5-Ton Off-Road Forklift

5-Ton Off-Road Forklift

Forklifts are industrial material handling vehicles, referring to various wheeled handling vehicles used for loading, unloading, stacking, and short-distance transport of palletized goods. They are commonly used for transporting large items in warehouses and are typically powered by internal combustion engines or batteries.
The technical parameters of a forklift describe its structural characteristics and working performance. Key technical parameters include: rated lifting capacity, load center distance, maximum lifting height, mast tilt angle, maximum travel speed, minimum turning radius, minimum ground clearance, wheelbase, and track width.
WhatsApp:+86 18963088836
Email:coco@jcxcsteel.com
Contact Us

Product Description

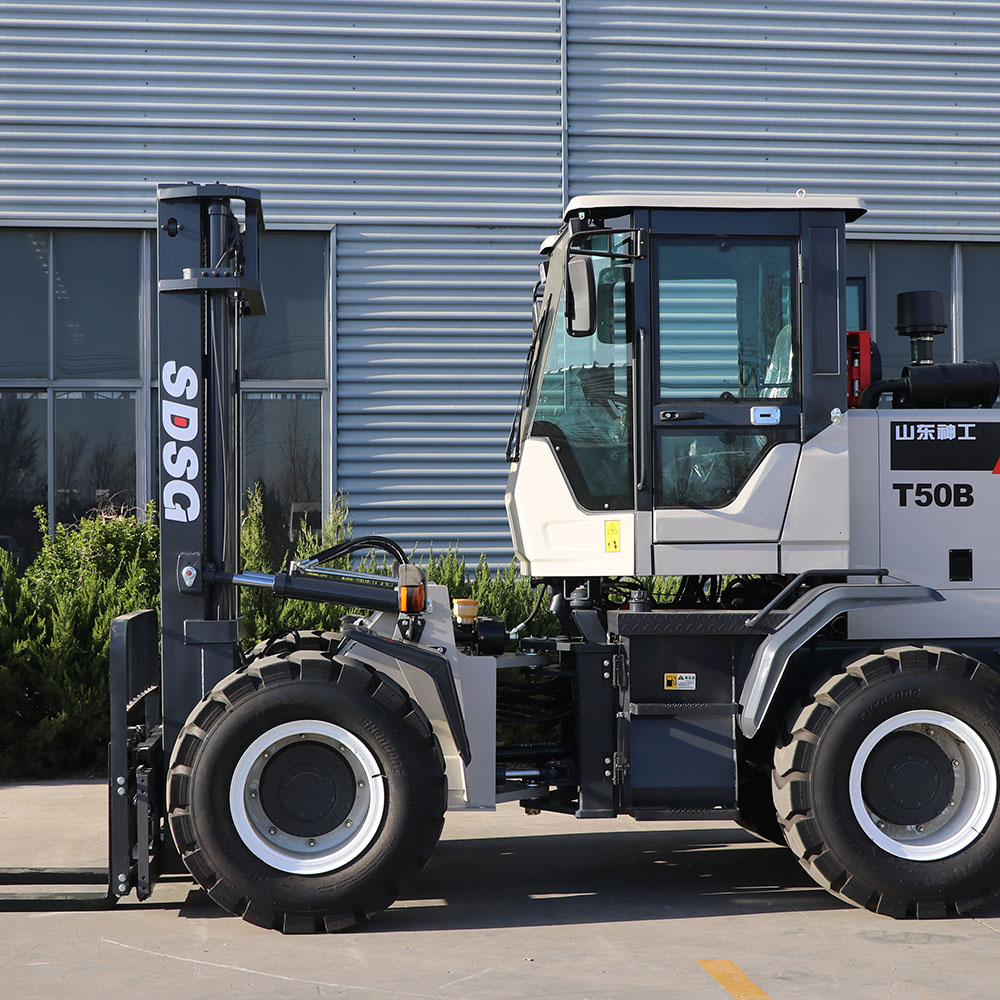

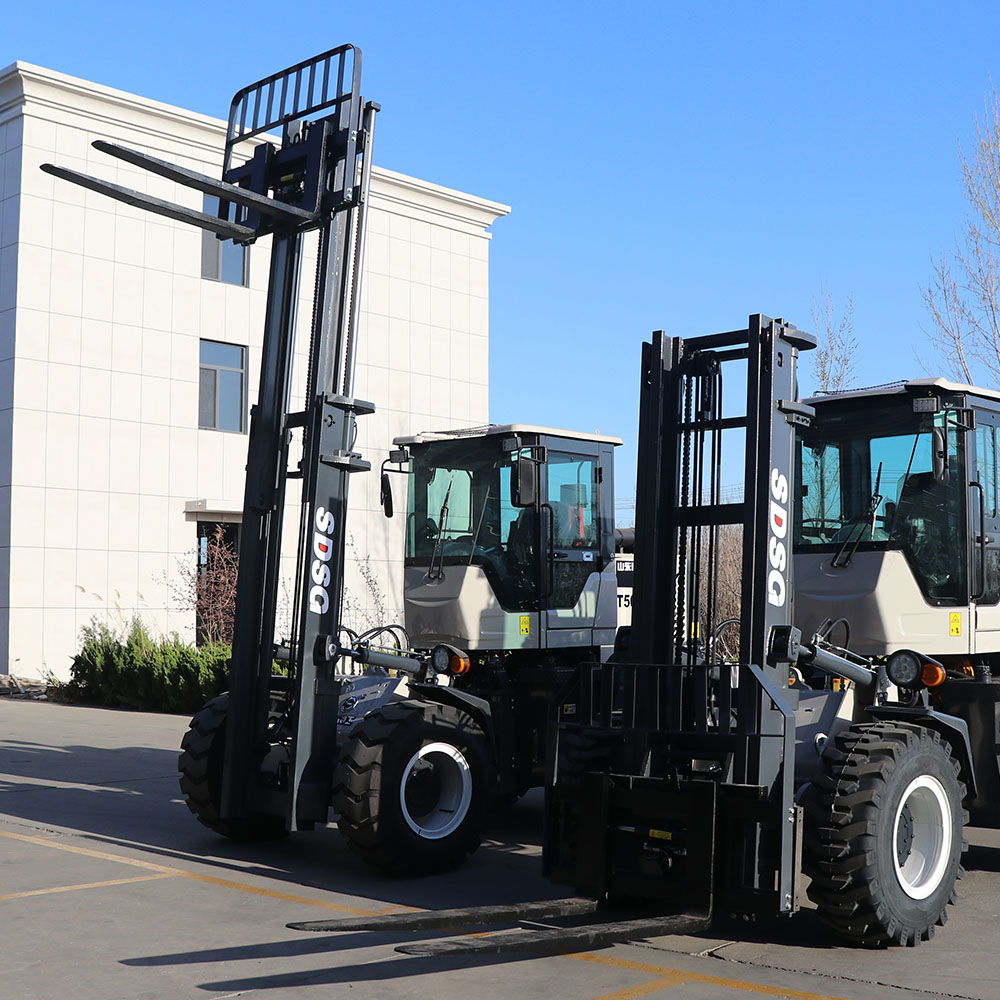

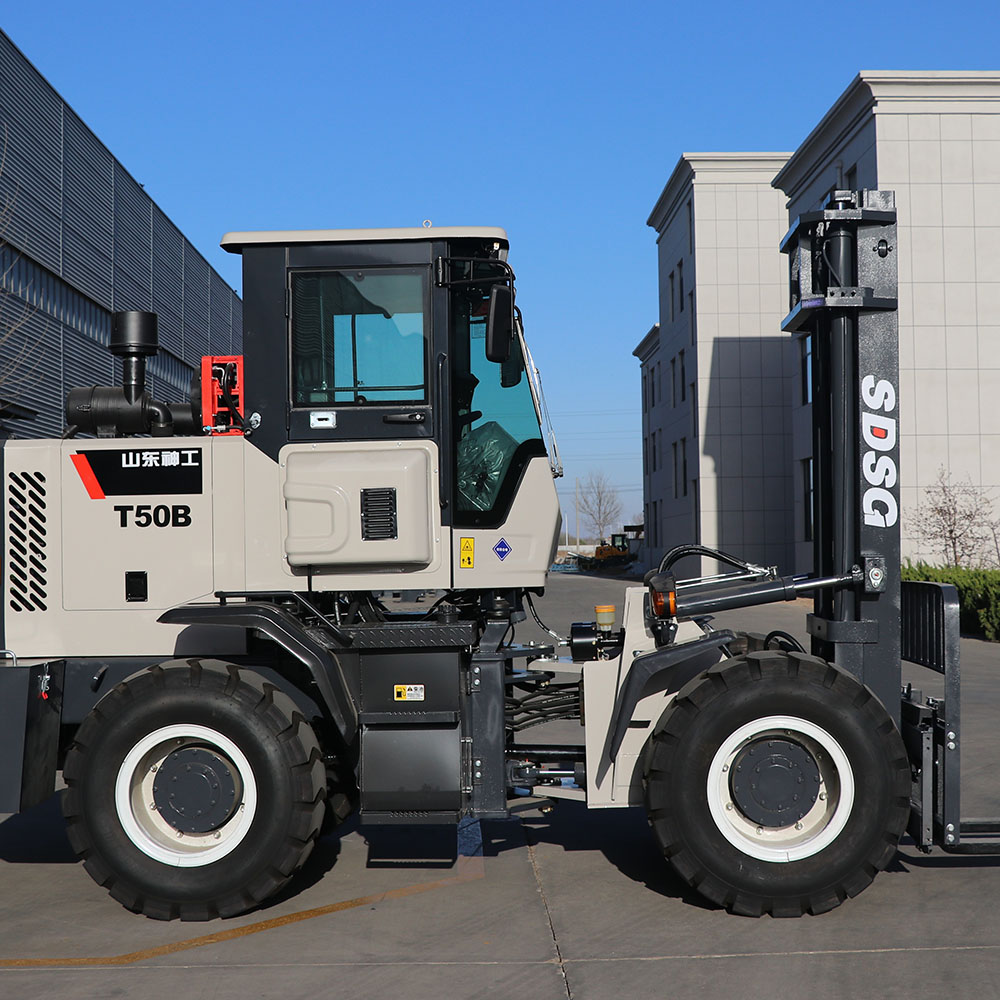

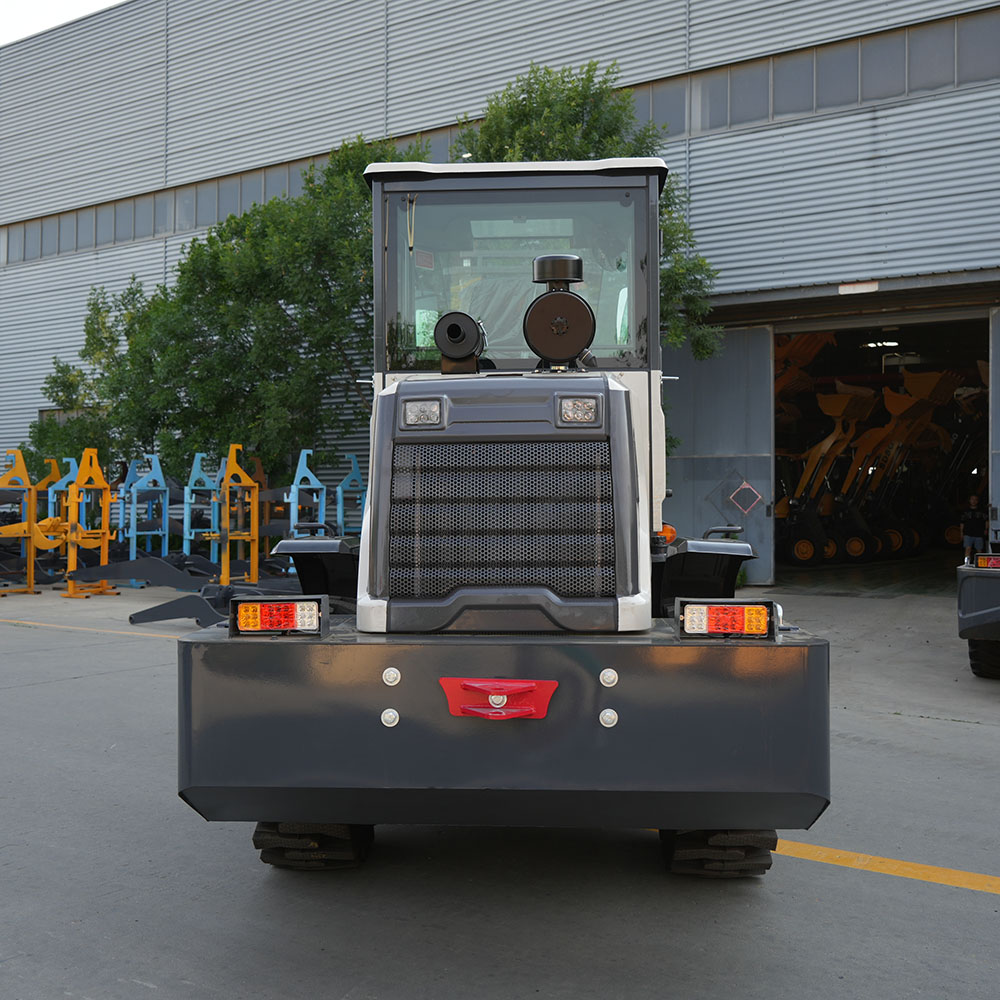

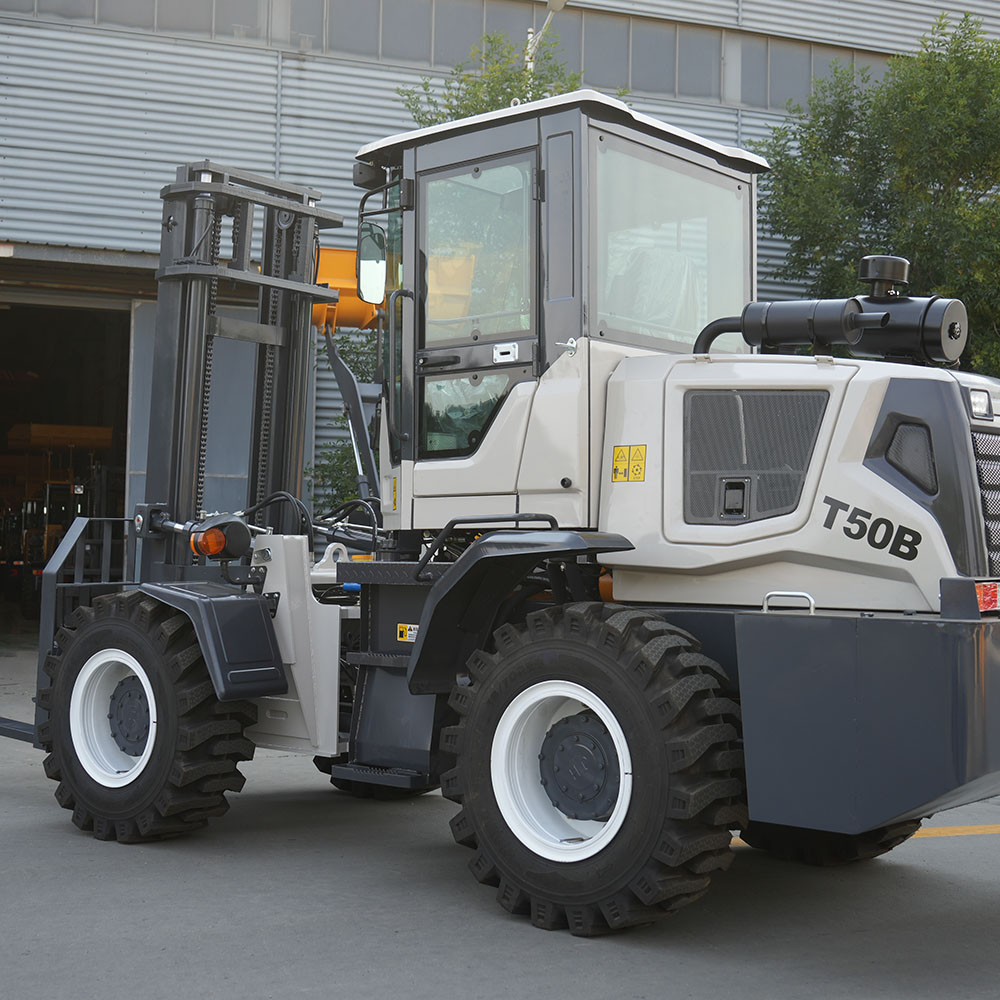

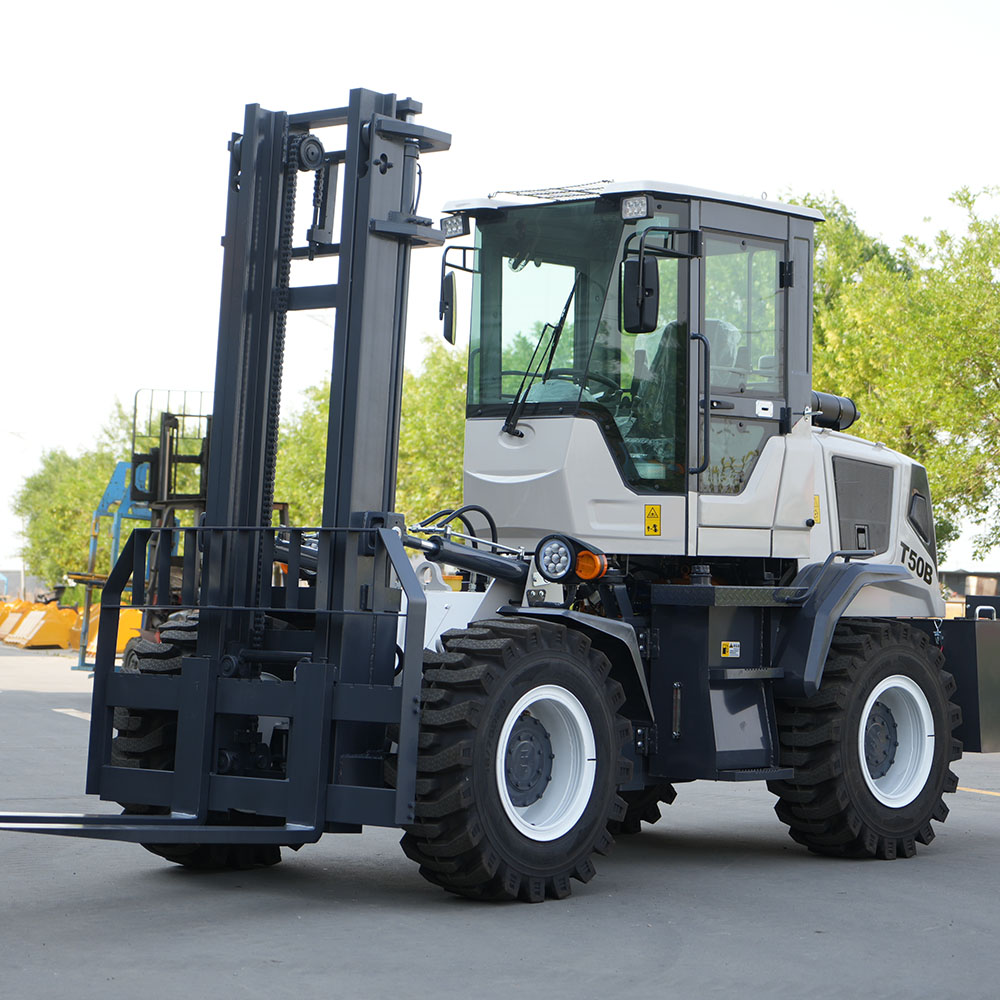

This product is a 5-ton rated load all-terrain internal combustion off-road forklift. It features a full-time/optional four-wheel drive system and a high-strength frame structure, making it a professional-grade material handling equipment developed for heavy-duty and complex terrain conditions such as mines, construction sites, forestry farms, quarries, farms, and mountain transport. Unlike traditional forklifts designed for leveling areas, this forklift boasts high ground clearance, large-tread off-road tires, and superior climbing ability, enabling continuous and stable operation on unpaved surfaces such as mud, gravel, slopes, and potholes. With its 5-ton load capacity and all-weather terrain adaptability, this product is a heavy-duty logistics equipment for mining, port yards, timber processing, and infrastructure construction.

Product Parameters



Overall Dimensions
Length (excl. forks) × Width × Height4560 × 2120 × 2940
Wheelbase2380
Wheel Tread1720
Lifting Height (Unloaded)4000
Lifting Height (Loaded)4000
Mast Type2-Stage, 4m
Mast Height2940
Mast Forward Tilt Angle
Mast Backward Tilt Angle12°
Load Center Distance500
Rated Load Capacity4000
Overall Weight±5780 kg
Tire Size1670-20
Gradeability (Unloaded)22°
Gradeability (Loaded)28°
Minimum Ground Clearance290
Fork Dimensions (Length × Width × Thickness)1370 × 150 × 50
Engine
Brand / ModelYunnei / YN38GBZ
Rated Power (kW/rpm)76 kW
Max. Torque (N·m)340
Cylinders / ValvesApril 8
Compression Ratio17.2:1
Displacement (L)3.8
Intake TypeTurbocharged
Transmission System
Torque Converter Size265
Torque Converter TypeSplit-type
Gear Positions4 + 4
Axle TypeCast Steel Heavy-Duty Wheel Rims
Fuel Tank Capacity85 L
Braking System
Service BrakeAir Brake
Parking BrakeMechanical Handbrake
Steering TypeFront-Wheel Steering
Hydraulic System
Standard ConfigurationSingle-Lever Operation
Lifting Time (Unloaded)10 s
Lifting Time (Loaded)
Other
Main Gear PumpCBTX2063
Travel PumpCBFC-25
Steering UnitBZZ5-250CFK
Control ValveType 20 (Triple-Section, Dual-Valve)
Travel Speed35 km/h
Minimum Turning Radius2900


Packaging And Transportation


Packing and Shipping

We have four ways of delivery. Low cost, large volume, long-distance transportation

1.Container:

(1)Simplify packaging and save a lot of packaging costs

(2)Reduce damage and poor quality of goods and improve the quality of goods

(3)Reduce operating expenses and transport costs

2.Bulk cargo ship:

(1)Extremely long time in port

(2) Fast pace, slow speed, less port, long continuous voyage
3.Flat rack ship:

Large cargo capacity, low fuel consumption, good economic benefits;
4.RO RO ship:

Ro-ro ships have greater adaptability, Carrying special cargo and large cargo
