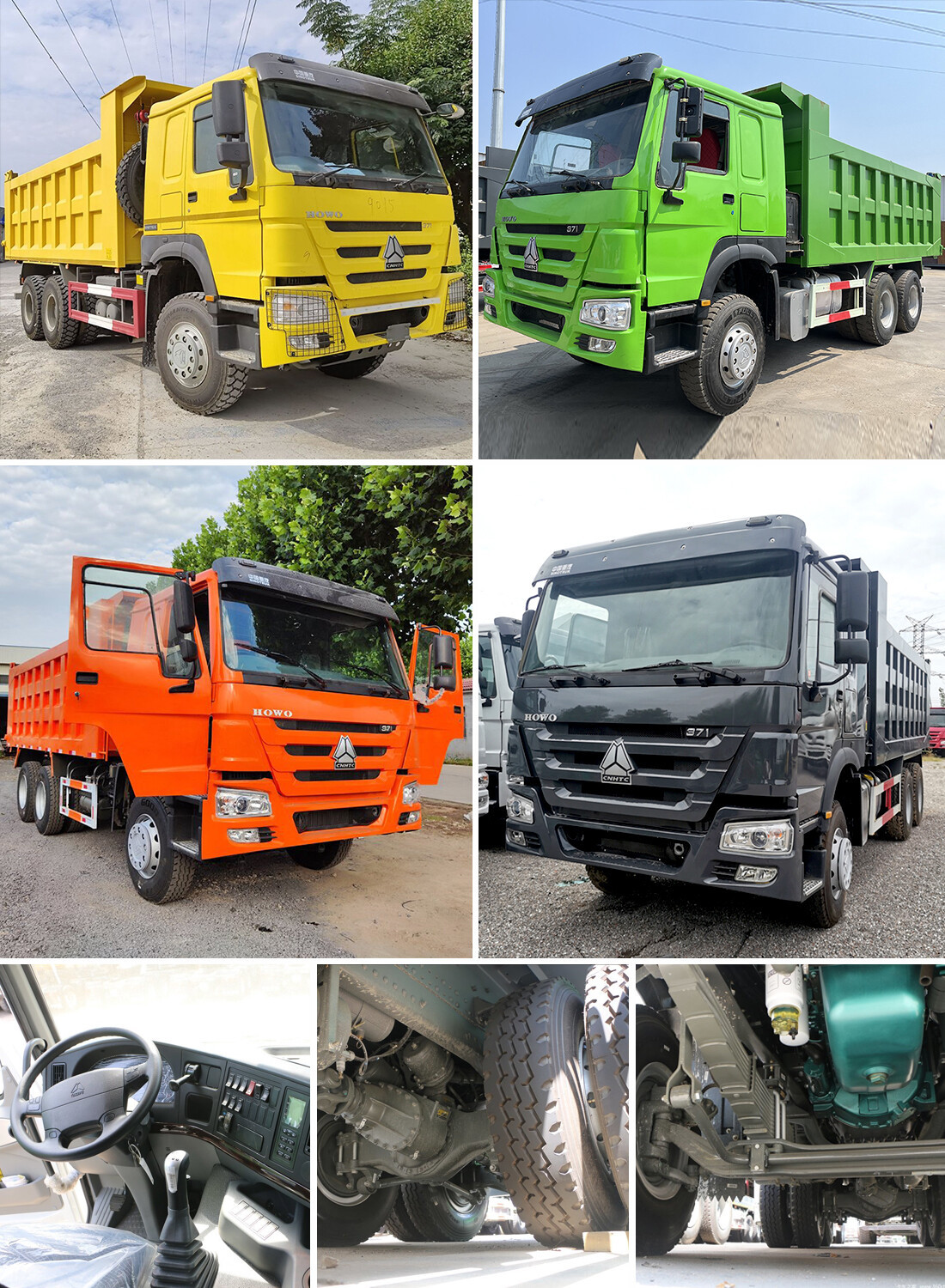

Sinotruck HOWO 6X4 371hp Dump Truck

Sinotruck HOWO 6X4 371hp Dump Truck

Model Number: Howo 371 Dump Truck
Drive Wheel: 6×4
After-sales Service: 24 Months
Place of Origin: China
Packaging Details: nude
Payment Terms: T/T, LC, Western Union
Delivery Time: 15-25 working days after received your payment
Shipping: Ro-Ro/Bulk cargo/Container
shipment / SKD / CKD / etc
WhatsApp:+86 18963088836
Email:coco@jcxcsteel.com
Contact Us

Product Description




Sinotruk Howo 10 Wheels 375 HP Dump Truck 6x4 30 Ton Tipper Truck


SINOTRUK HOWO 6x4 used dump trucks are in great demand from customers, the proven product, which features reliable structure, great loading capacity, excellent power, reliable performance. This dump truck model could meet the requirements of different road conditions, and could satisfy your need of long distance highway transportation. If you have dump truck purchase plan, I could provide you with the best price and comprehensive service.

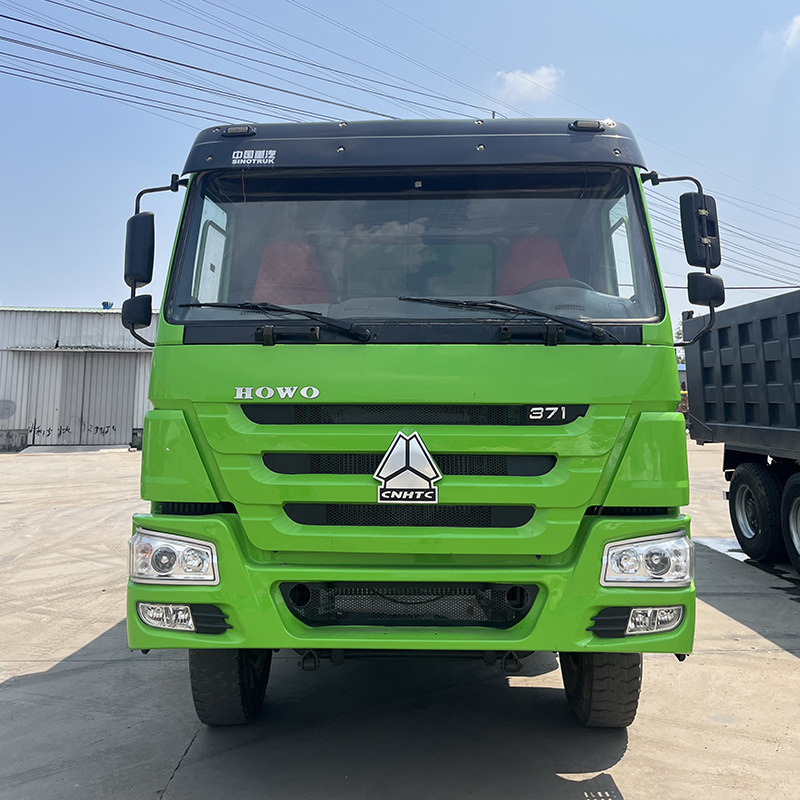

Sinotruck HOWO 6X4 371hp Dump Truck


Product Parameters



HOWO 6X4 10 wheels 336hp dump truck front tipping is mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), mainly in mining, construction sites and so on.   The 10 wheels 6X4 dump truck with 25-30 tons capacity can meet your needs.   All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity.


MAIN DESCRIPTION

Overall Dimension

8545mm*2496mm*3350mm (L*W*H)

Payload

25-30ton

Curb Weight

12500kg

Front Overhang

1500mm

Rear Overhang

1870mm

Wheelbase

3825mm +1350mm

CHASSIS

Chassis Brand

SINOTRUK HOWO

Driving Type

6x4

Cab

HW76, left hand drive, air-conditioner, one bed

Engine and Power

Brand: SINOTRUK, diesel engine, 375HP /371HP, 4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and inter-cooling, Euro II emission standard

Steering

ZF8098, hydraulic steering with power assistance

Transmission

HW15710, 10 forward speeds and 2 reverse

Clutch

Model: 430, diaphragm clutch

Front Axle

HF9, load capacity 9 ton, drum brake

Rear Axle

HC16 tandem axle, load capacity 13000kg x2, ratio 5.73

Tire

12.00-20, 11units including 1 spare tire

CARGO BODY

Inside Dimension

5600mm*2300mm*1500mm(L*W*H)

Hydraulic Cylinder

Ventral T-type lift system

Steel sheet thickness

Floor 8mm, side wall 6mm

Tailgate

One-piece tailgate with upper articulation, safety lock system


Packaging And Transportation

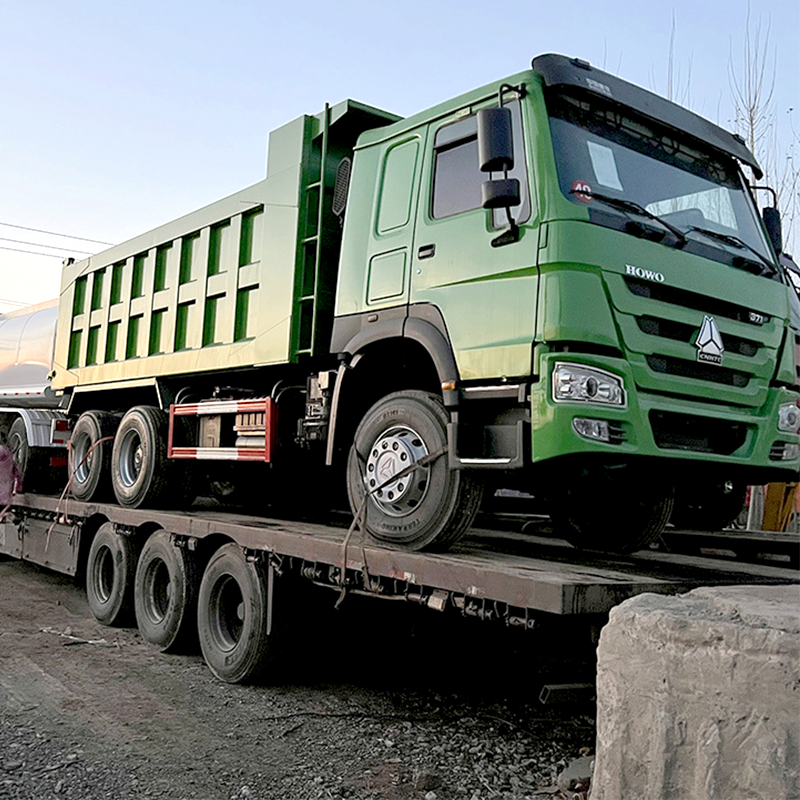

Packing and shipping

Usually Our Truck can be shipped by Ro-ro ship or Bulk ship or Container or Flat rack.
Choose the most safety and economy solutions shipping customers trailers.So customers can get them happily.
We will choose the The most economical, fastest and safest way for customers.

Packing Detail:


RoRo or Bulk base on the ship and port in your country. If the truck on the deck,we will spray antirust paint with free. Usually we will put the truck in cabin ofthe ship.

Sinotruck HOWO 6X4 371hp Dump Truck

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
