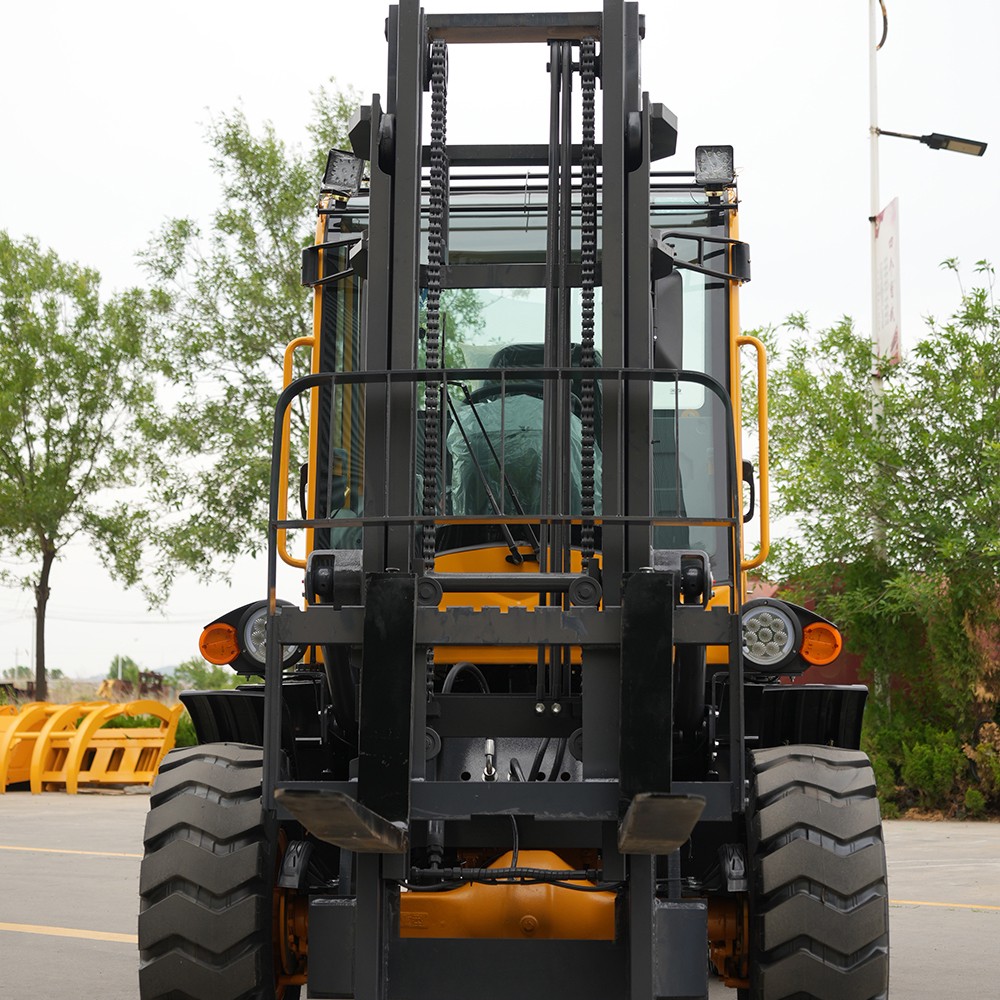

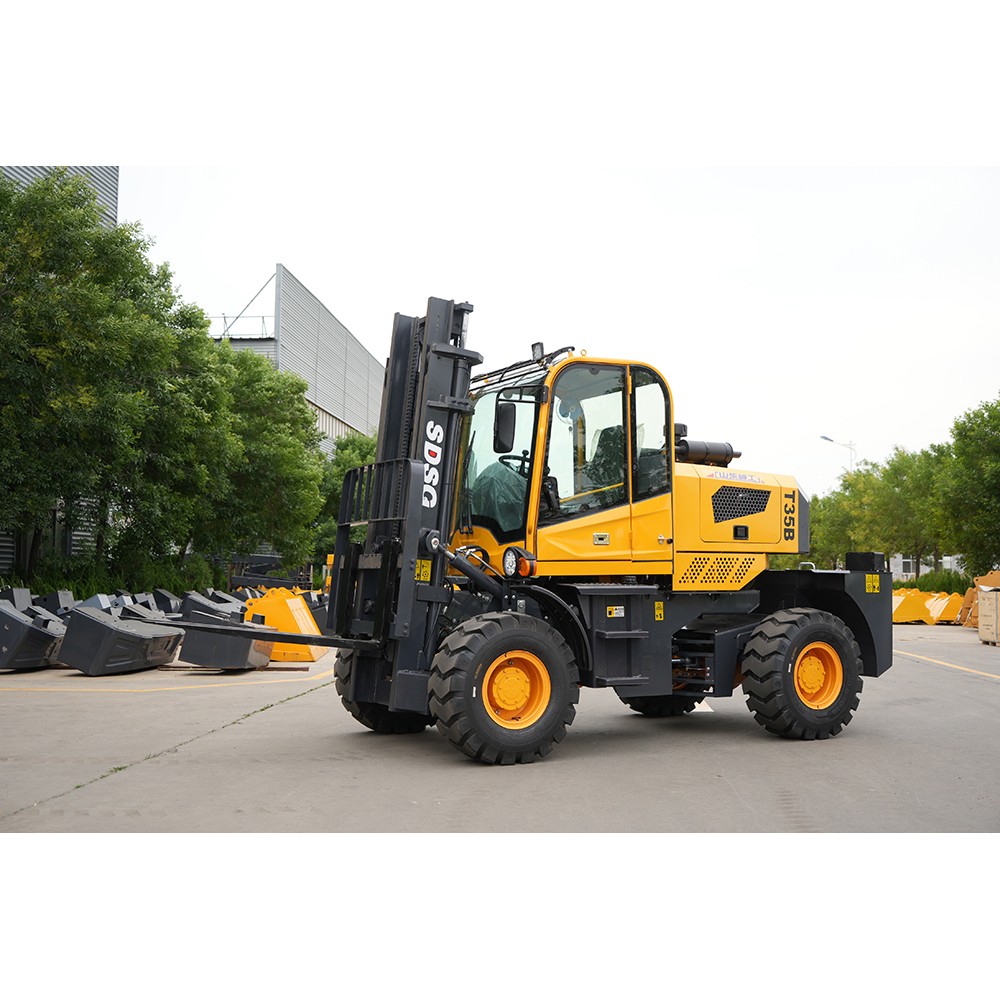

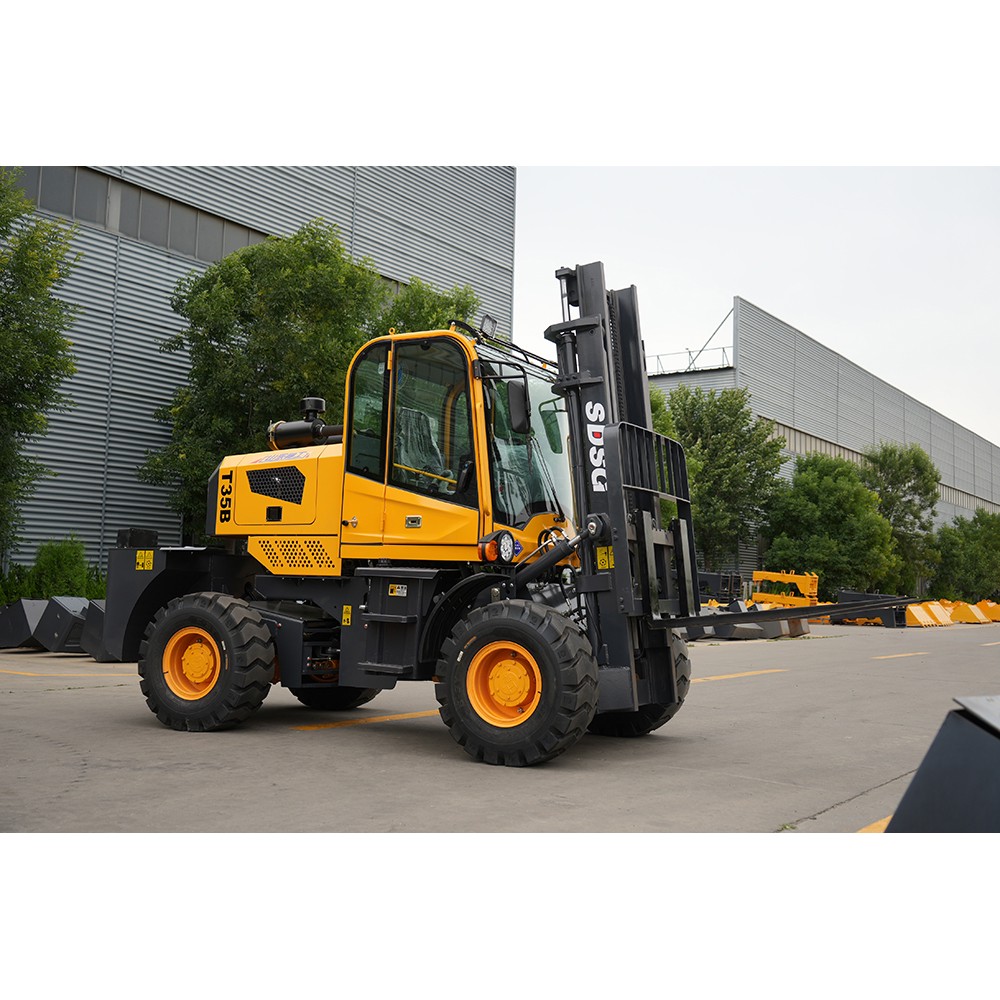

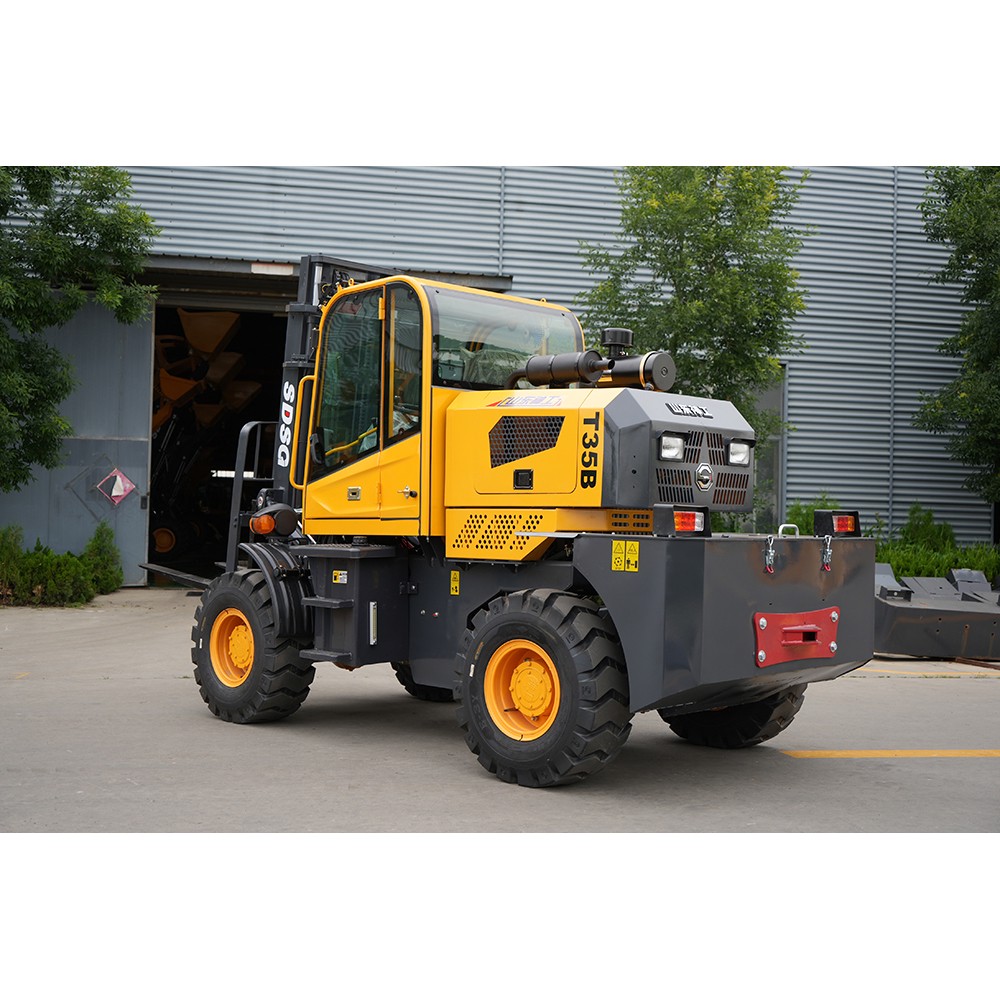

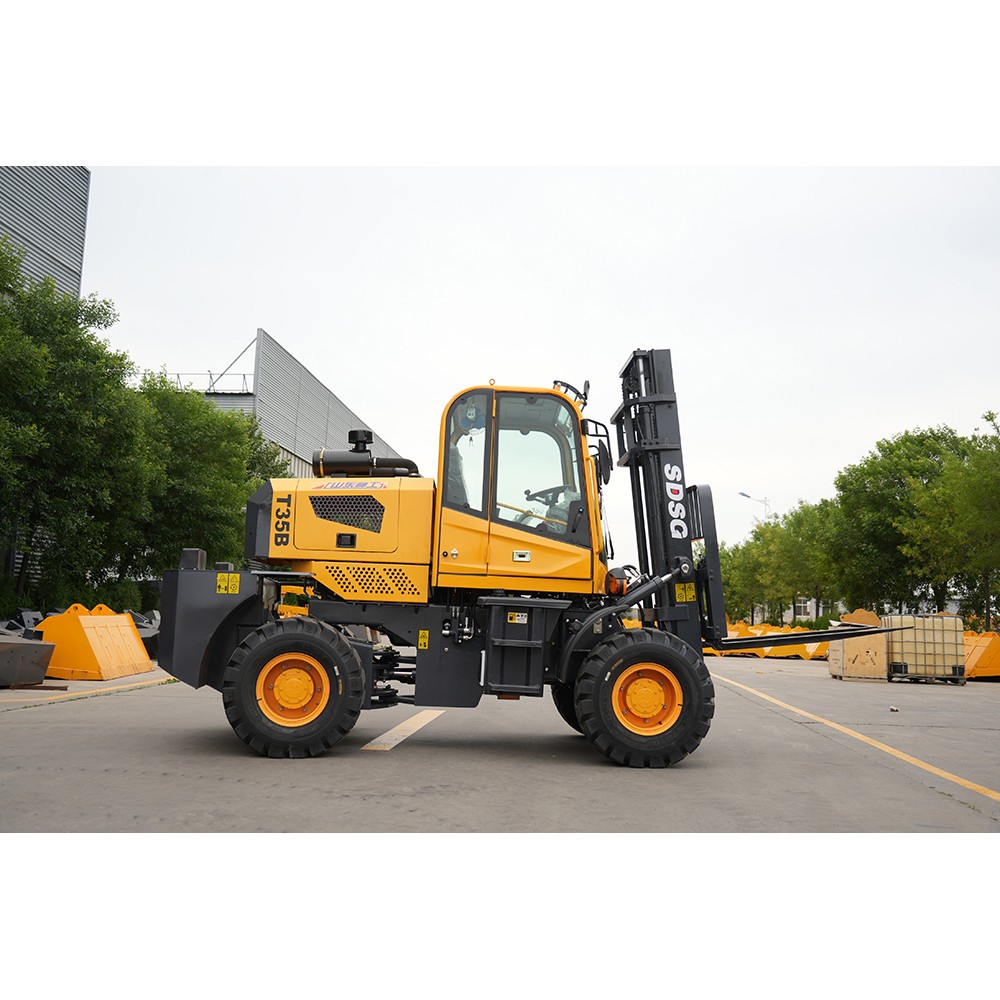

3-Ton Rear-Steering  Off-Road Forklift

3-Ton Rear-Steering Off-Road Forklift

Forklifts are industrial material handling vehicles, referring to various wheeled handling vehicles used for loading, unloading, stacking, and short-distance transport of palletized goods. They are commonly used for transporting large items in warehouses and are typically powered by internal combustion engines or batteries.
The technical parameters of a forklift describe its structural characteristics and working performance. Key technical parameters include: rated lifting capacity, load center distance, maximum lifting height, mast tilt angle, maximum travel speed, minimum turning radius, minimum ground clearance, wheelbase, and track width.
WhatsApp:+86 18963088836
Email:coco@jcxcsteel.com
Contact Us

Product Description



This product is an all-terrain diesel off-road forklift with a rated load of 3 tons. It features rear-wheel steering and an articulated frame structure, primarily designed for heavy-duty material handling in complex terrains and challenging conditions, such as farms, orchards, forest farms, construction sites, mines, and gravel pits. Thanks to the agile maneuverability provided by rear-wheel steering and the robust off-road capability of its four-wheel drive system, this forklift can operate stably and efficiently in mud, gravel, slopes, and narrow spaces, making it an ideal piece of equipment for outdoor heavy-duty logistics.

Product Parameters



Overall Dimensions
Length x Width x Height (mm)3800*1850*2500
Wheelbase (mm)2250
Wheel Track (mm)1500
Dumping Height (mm)3000
Minimum Ground Clearance (mm)230
Turning Radius (mm)2400
Rated Load3500KG
Operating Weight4400KG
Tilting Cylinder40/80
Steering Cylinder35/73
Standard Tires20.5-16
Max. Tractive Force (kN)25
Max. Gradeability (°)30
Fuel Tank Capacity60L
Front Articulation Plate Thickness (mm)20
Rear Articulation Plate Thickness (mm)30
Braking System
Service BrakeAir Brakes
Parking BrakeMechanical Handbrake
engine
Brand / ModelYun YN27GBZ
Rated Power (kW / rpm)58 kW
Max. Torque (N·m)185
Cylinders / Valves4/8
Net Weight240 kg
Displacement (L)4.328
Intake TypeTurbocharged
Transmission System
Transmission Type265 Integrated Structure
Gears2+2 Configuration
Standard AxleCast Steel Small Wheel Hubs
Steering GearBZZ250C Steering Unit
Distributor15A 4-Section Valve (2 Valves, 3 Levers)
Travel Speed30 km/h
Hydraulic System
Standard ConfigurationHorizontal Bar (Manipulation)
Lifting Time6
Lowering Time4.5
Fork Length1220 (L) × 45 (Thk) × 12 (W)
