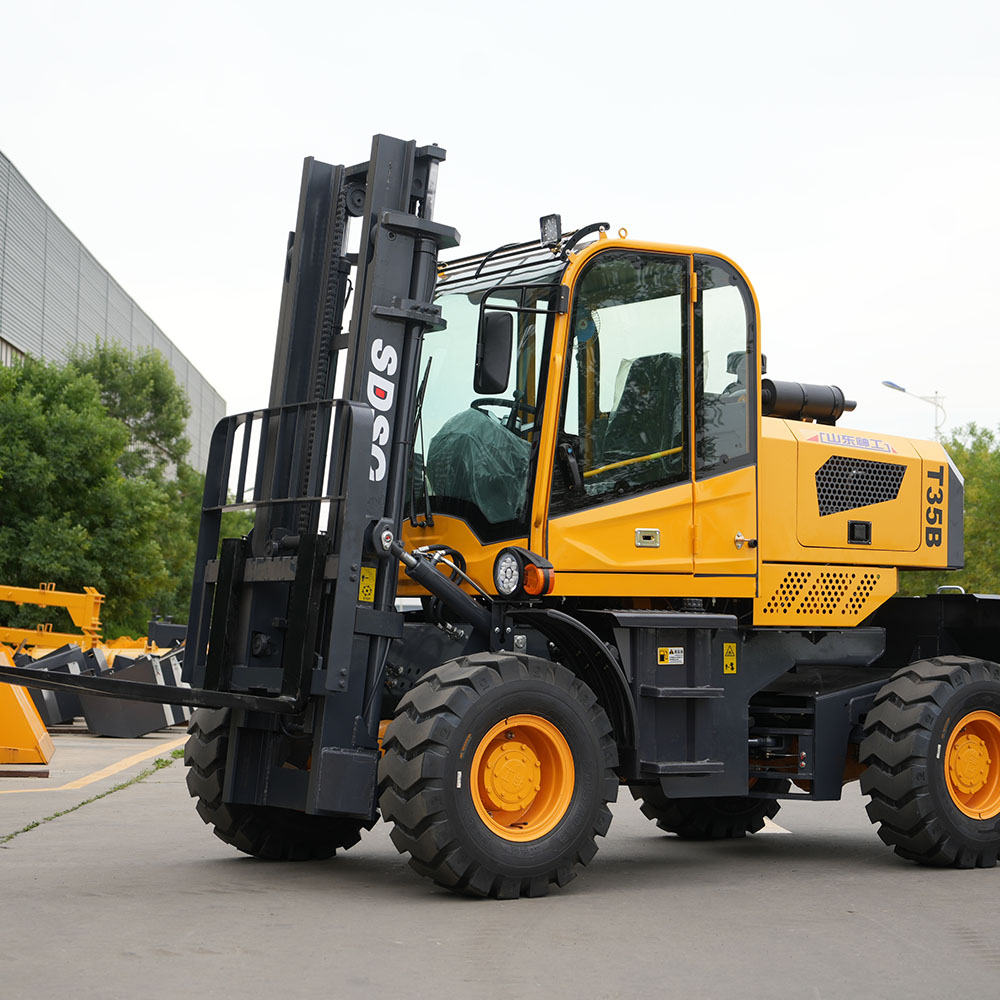

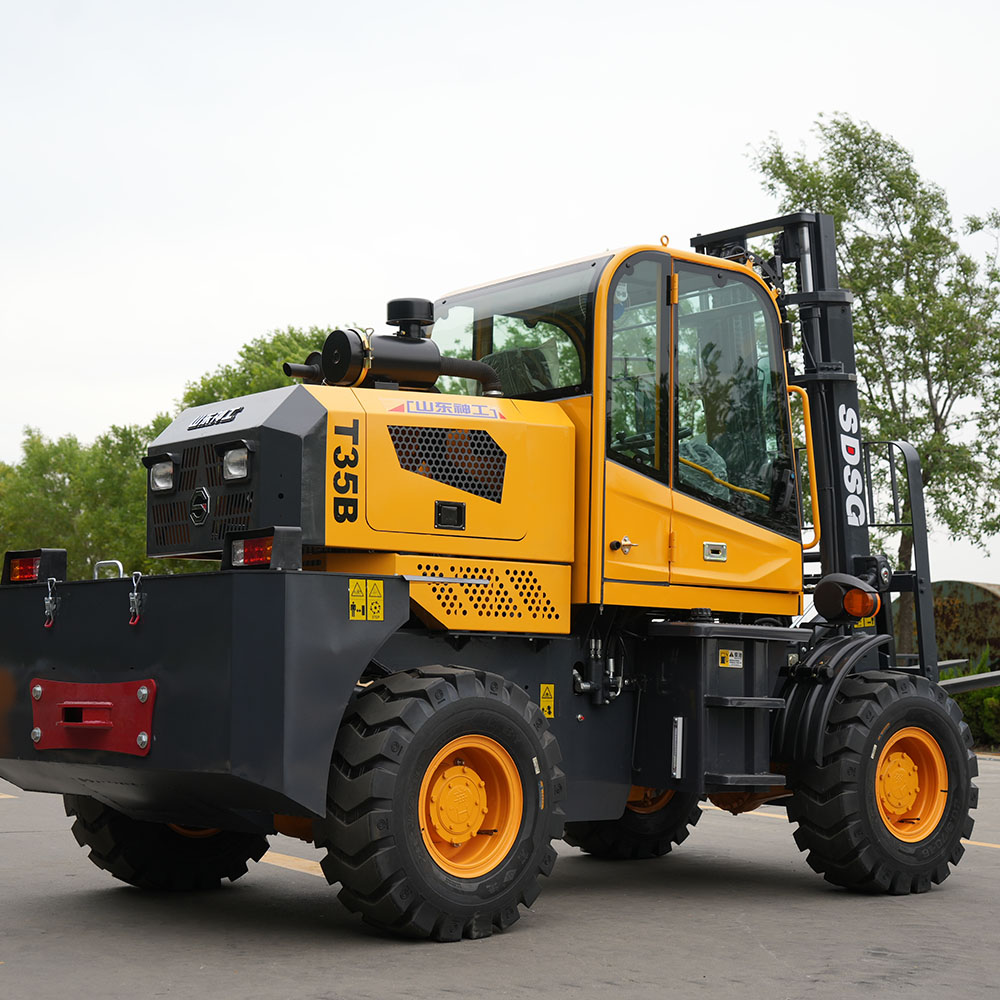

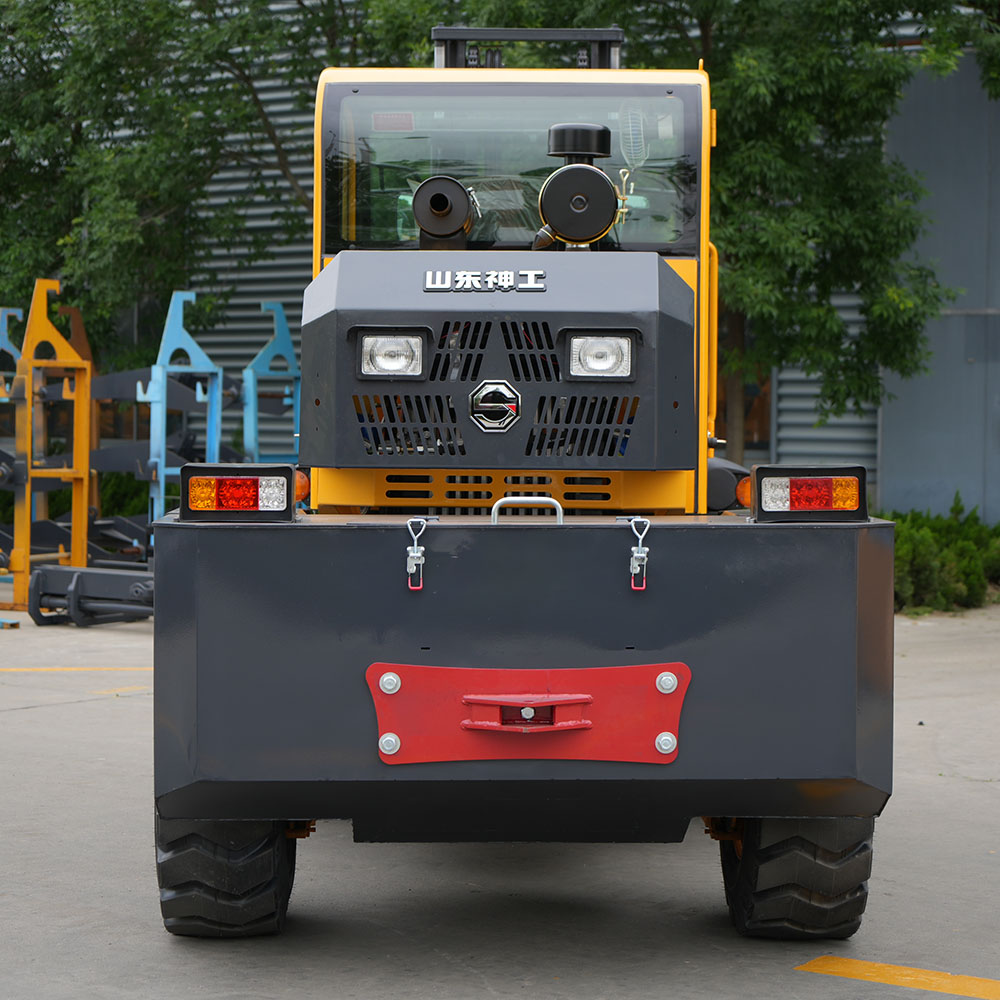

3-Ton Rear-Steering Forklift T35R

3-Ton Rear-Steering Forklift T35R

Forklifts are industrial material handling vehicles, referring to various wheeled handling vehicles used for loading, unloading, stacking, and short-distance transport of palletized goods. They are commonly used for transporting large items in warehouses and are typically powered by internal combustion engines or batteries.
The technical parameters of a forklift describe its structural characteristics and working performance. Key technical parameters include: rated lifting capacity, load center distance, maximum lifting height, mast tilt angle, maximum travel speed, minimum turning radius, minimum ground clearance, wheelbase, and track width.
WhatsApp:+86 18963088836
Email:coco@jcxcsteel.com
Contact Us

Product Description



The T35R is a high-performance internal combustion off-road forklift designed for complex working conditions and diverse terrains. With a rated load of 3 tons and a rear-wheel steering drive design, it balances load-bearing capacity with site mobility. This model is widely applicable to various working environments such as farms, orchards, construction sites, forestry stacking, sand and gravel pits, and mining areas, making it an ideal machine for handling harsh terrain and heavy-duty outdoor handling needs.

Product Parameters




Overall Dimensions
Length x Width x Height (mm)3800 × 1850 × 2500
Wheelbase (mm)2250
Wheel Track (mm)1500
Dumping Height (mm)3000
Minimum Ground Clearance (mm)230
Turning Radius (mm)2400
Rated Load3500 kg
Operating Weight4400 kg
Lift Cylinder40/80
Steering Cylinder35/73
Standard Tires20.5-16
Max. Tractive Force (kN)25
Max. Gradeability (°)30
Fuel Tank Capacity60 L
Front Articulation Plate Thickness (mm)20
Rear Articulation Plate Thickness (mm)30
Braking System
Service BrakeAir Brake
Parking BrakeMechanical Handbrake
Engine
Brand / ModelYunnei YN27GBZ
Rated Power (kW/rpm)58 kW
Max. Torque (N·m)185
Cylinders / Valves4/8
Net Weight240 kg
Displacement (L)4.328
Intake TypeTurbocharged
Transmission System
Transmission Type265 (Integrated)
Gears2+2
Standard AxleCast Steel Wheel-side Reducer
Steering ValveBZZ250C
Control Valve15A4 (4-section, 2-valve, 3-lever)
Travel Speed30 km/h
Hydraulic System
Standard ConfigurationSingle-lever Control
Lifting Time6
Lowering Time4.5
Fork Length1220 (L) × 45 (T) × 12 (W)


Packaging And Transportation


Packing and Shipping

We have four ways of delivery. Low cost, large volume, long-distance transportation

1.Container:

(1)Simplify packaging and save a lot of packaging costs

(2)Reduce damage and poor quality of goods and improve the quality of goods

(3)Reduce operating expenses and transport costs

2.Bulk cargo ship:

(1)Extremely long time in port

(2) Fast pace, slow speed, less port, long continuous voyage
3.Flat rack ship:

Large cargo capacity, low fuel consumption, good economic benefits;
4.RO RO ship:

Ro-ro ships have greater adaptability, Carrying special cargo and large cargo
