918 Little Steel Loader

918 Little Steel Loader

A loader is a type of earthmoving machinery widely used in construction projects such as highways, railways, buildings, hydropower, ports, and mines. It is mainly used for loading and unloading bulk materials such as soil, sand, gravel, lime, and coal, and can also perform light digging operations on ores and hard soil. By changing different auxiliary working devices, it can also perform bulldozing, lifting, and loading and unloading operations of other materials such as timber.
WhatsApp:+86 18963088836
Email:coco@jcxcsteel.com
Contact Us

Product Description

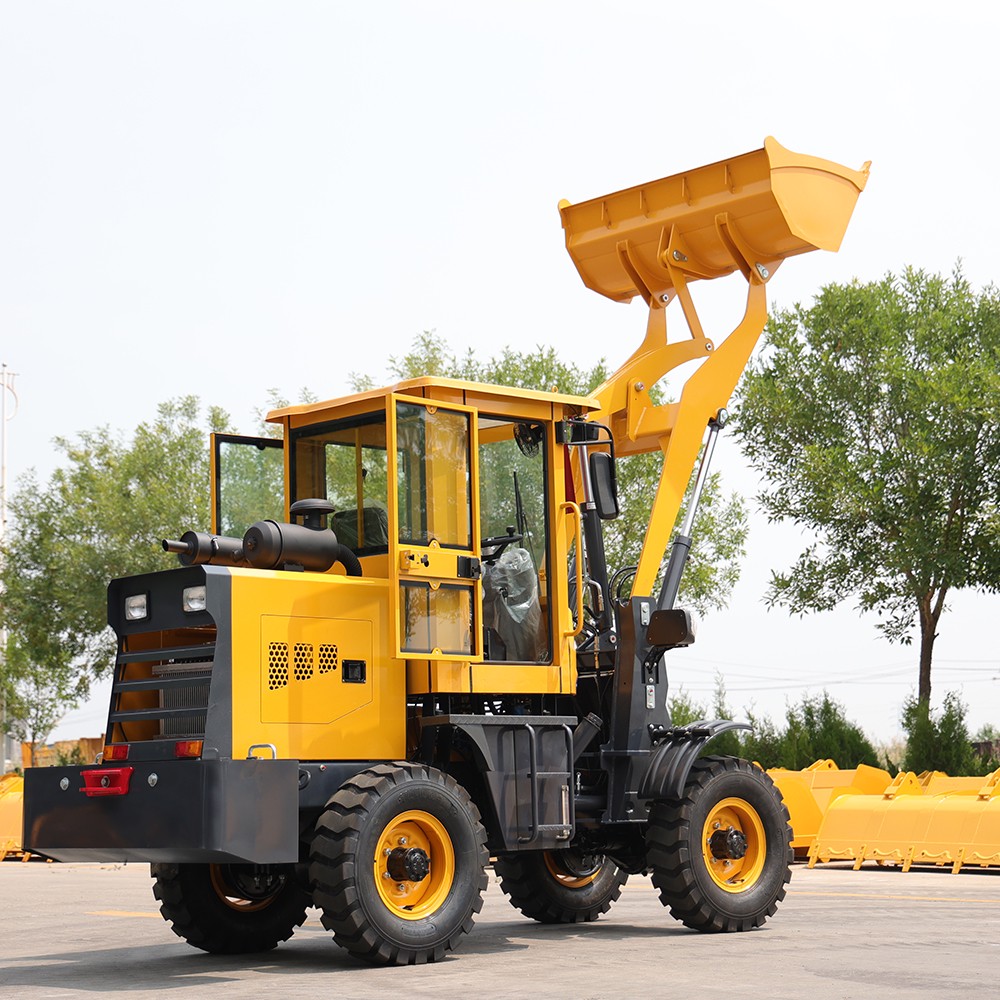

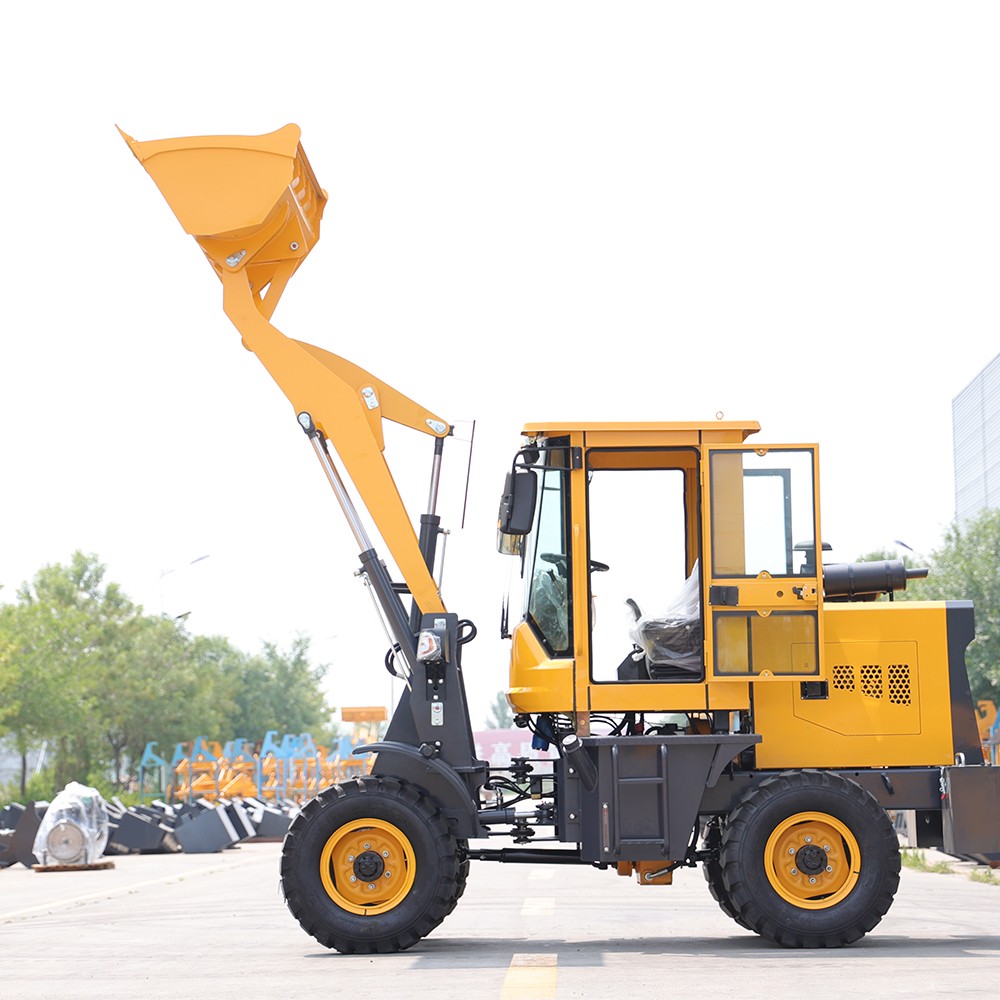

The 918 Little Steel Loader is a small wheel loader with a rated load capacity of 1.5–1.8 tons, widely applicable to various operating scenarios such as construction sites, sand and gravel yards, farms, livestock farms, municipal engineering projects, and small mines. This model features a streamlined exterior design, a fully tempered glass cab providing excellent visibility, and an attractive appearance. The name "Little Steel" signifies the machine's powerful and efficient nature—compact and agile, with ample and efficient power, allowing it to navigate confined spaces and complex working conditions with ease.

Product Parameters



918 — Main Technical Parameters of the Product
Overall Dimensions
Length × Width × Height (mm)4700*1320*2540
Wheelbase (mm)1950
Wheel Track (mm)1080
Dumping Height (mm)2400
Dumping Distance (mm)880
Minimum Ground Clearance (mm)250
Turning Radius (mm)4300
Overall Specifications
Bucket Width (mm)Standard Width: 1.0m (Extendable to 1.3m)
Bucket Capacity (m³)0.35 m³
Rated Load (kg)800 kg
Operating Weight (kg)2100 kg
Standard Tires7.50-16
Standard AxlesNarrow 130 Axle
Engine
Brand / ModelHuadong L4DBY4
Rated Power40kw
Rated Speed2400r/min
TypeInline four-cylinder
Weight220
Transmission System
Torque Converter SizeMechanical
Torque Converter TypeIntegrated Design
Transmission TypeHydraulic Shifting
Number of Gears2 Forward / 2 Reverse Gears
Fuel Tank Capacity (L)35
Fuel Tank Dimensions (mm)400 × 180 × 520
Center Lift Cylinder (mm)Inner 40 / Outer 85
Side Lift Cylinders (mm)Inner 35 / Outer 75
Hydraulic System
Standard ConfigurationSingle-Bar Mechanism
Lifting Time4s
Lowering Time3s
Braking System
Service BrakeHydraulic Brakes
Parking BrakeMechanical Handbrake
Other
Main Gear PumpCBF-32
Travel PumpCBN-F316
Steering Unit160
Control Valve15.2
Travel Speed25km/h
Boom Thickness (mm)16

Packaging And Transportation


Packing and Shipping

We have four ways of delivery. Low cost, large volume, long-distance transportation

1.Container:

(1)Simplify packaging and save a lot of packaging costs

(2)Reduce damage and poor quality of goods and improve the quality of goods

(3)Reduce operating expenses and transport costs

2.Bulk cargo ship:

(1)Extremely long time in port

(2) Fast pace, slow speed, less port, long continuous voyage
3.Flat rack ship:

Large cargo capacity, low fuel consumption, good economic benefits;
4.RO RO ship:

Ro-ro ships have greater adaptability, Carrying special cargo and large cargo

918 Little Steel Loader


Factory Show



  • 未标题-2
  • 未标题-1
  • 1770099593877195032174931968
  • 1770099592877195030983749632
  • 1770099592877195027796086784
  • 1770099590877195021143920640

FAQ



Contact Us



SUBMIT

Quality and After-sale Assurance

As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.

We promises that the name, model, specification and quantity of the equipment comply with the technical agreement. Guarantee that the equipment is excellent in craftsmanship, free from defects in design, materials, and workmanship, and meet customer needs.

We will provide service on installation and commissioning , no worry about after sales.

All equipment is delivered after passing the quality inspection and debugging.
