930-Q20 Loader

930-Q20 Loader

A loader is a type of earthmoving machinery widely used in construction projects such as highways, railways, buildings, hydropower, ports, and mines. It is mainly used for loading and unloading bulk materials such as soil, sand, gravel, lime, and coal, and can also perform light digging operations on ores and hard soil. By changing different auxiliary working devices, it can also perform bulldozing, lifting, and loading and unloading operations of other materials such as timber.
WhatsApp:+86 18963088836
Email:coco@jcxcsteel.com
Contact Us

Product Description

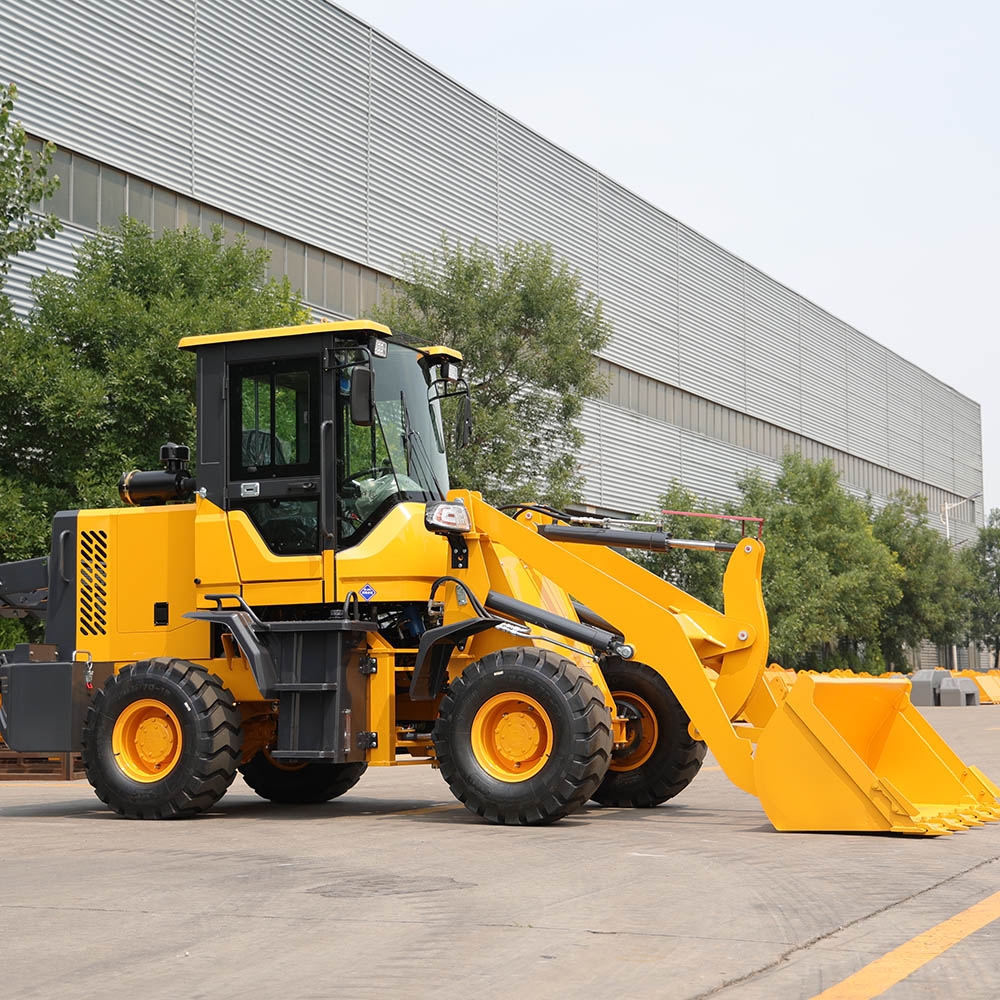

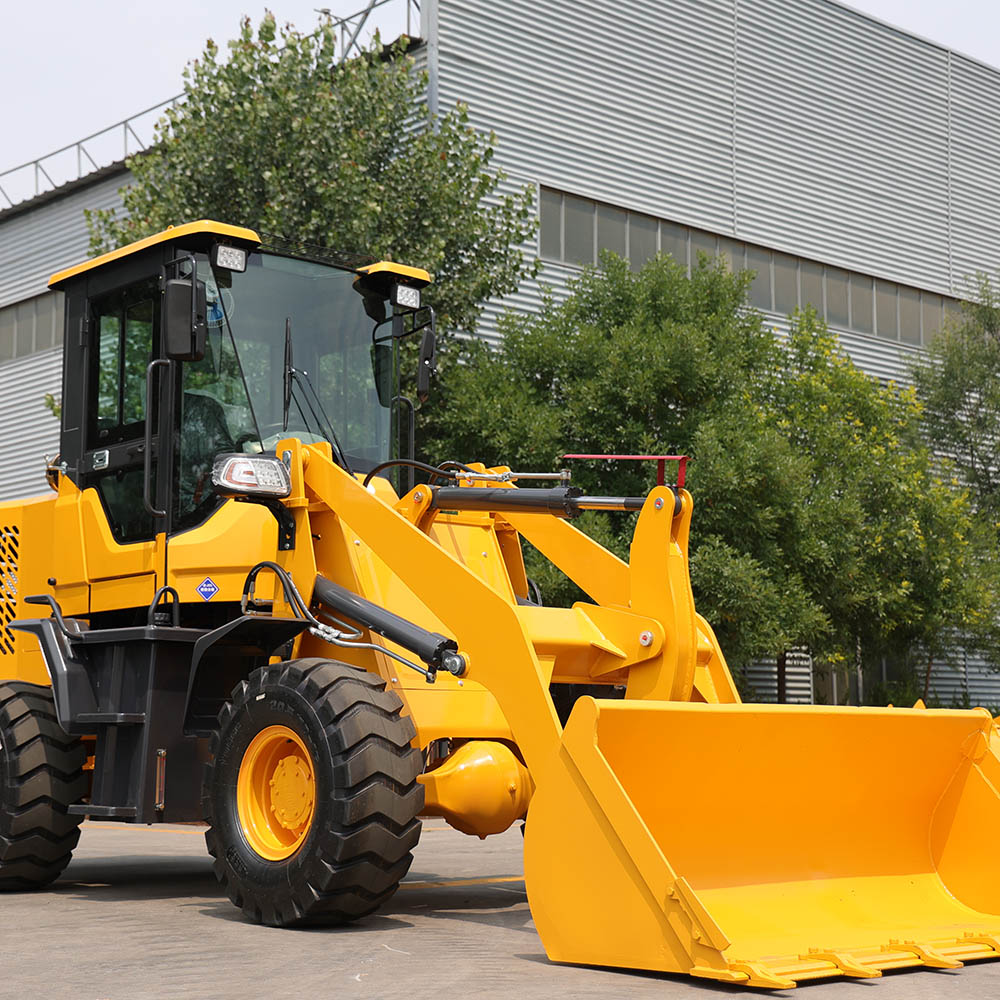

The 930-Q20 loader is a small to medium-sized wheel loader with a rated load capacity of 1.8–3 tons, widely applicable to various operating scenarios such as construction sites, sand and gravel yards, farms, livestock farms, municipal engineering projects, and small mines. Based on the mature 930 series platform, this model has been optimized and upgraded, capable of shoveling, loading, unloading, and transporting bulk materials. It can also achieve bulldozing and lifting functions by changing different working attachments.


The most significant feature of this model is its thickened hood and three-door rear hood design. The thickened hood effectively reduces overall machine resonance and noise, improving structural robustness and durability; the three-door rear hood design greatly facilitates daily maintenance and upkeep.


Product Parameters



920–930 Series Products: Key Technical Parameters
Overall Dimensions
Length × Width × Height (mm)5700 × 1930 × 2750
Wheelbase (mm)2180
Wheel Track (mm)1510
Dumping Height (mm)3200
Dumping Distance (mm)850
Minimum Ground Clearance (mm)230
Turning Radius3400
Machine Specifications
Bucket Width1900 mm
Bucket Capacity0.6 m³
Rated Load1500 kg
Operating Weight (kg)3250 (Empty) / 3750 (Loaded)
Standard AxleCast Steel Small Wheel-Side Reduction Axle
Engine
Make / ModelYunnei 490 Turbocharged Engine
Rated Power58 kW
Rated Speed2400 rpm
Type4-Stroke
Braking System
Service BrakeAir Brakes
Parking BrakeMechanical Handbrake
Transmission System
Torque Converter Size265 High/Low Speed Transmission
Torque Converter TypeHydraulic Transmission
Transmission TypeHydraulic Shifting
Gears2 Forward / 2 Reverse Gears
Fuel Tank Capacity50 L
Hydraulic System
Standard ConfigurationGear Pump
Lifting Time7s
Lowering Time6s
Other
Working PumpCB-FC40
Travel PumpCBN-F316
Steering Unit250
Control Valve18F
Travel Speed40 km/h
Boom Thickness25 rpm
Standard Tires20.5/70-16
Central Lift CylinderInner 50 / Outer 100
Side Lift CylindersInner 45 / Outer 90

Packaging And Transportation


Packing and Shipping

We have four ways of delivery. Low cost, large volume, long-distance transportation

1.Container:

(1)Simplify packaging and save a lot of packaging costs

(2)Reduce damage and poor quality of goods and improve the quality of goods

(3)Reduce operating expenses and transport costs

2.Bulk cargo ship:

(1)Extremely long time in port

(2) Fast pace, slow speed, less port, long continuous voyage
3.Flat rack ship:

Large cargo capacity, low fuel consumption, good economic benefits;
4.RO RO ship:

Ro-ro ships have greater adaptability, Carrying special cargo and large cargo
