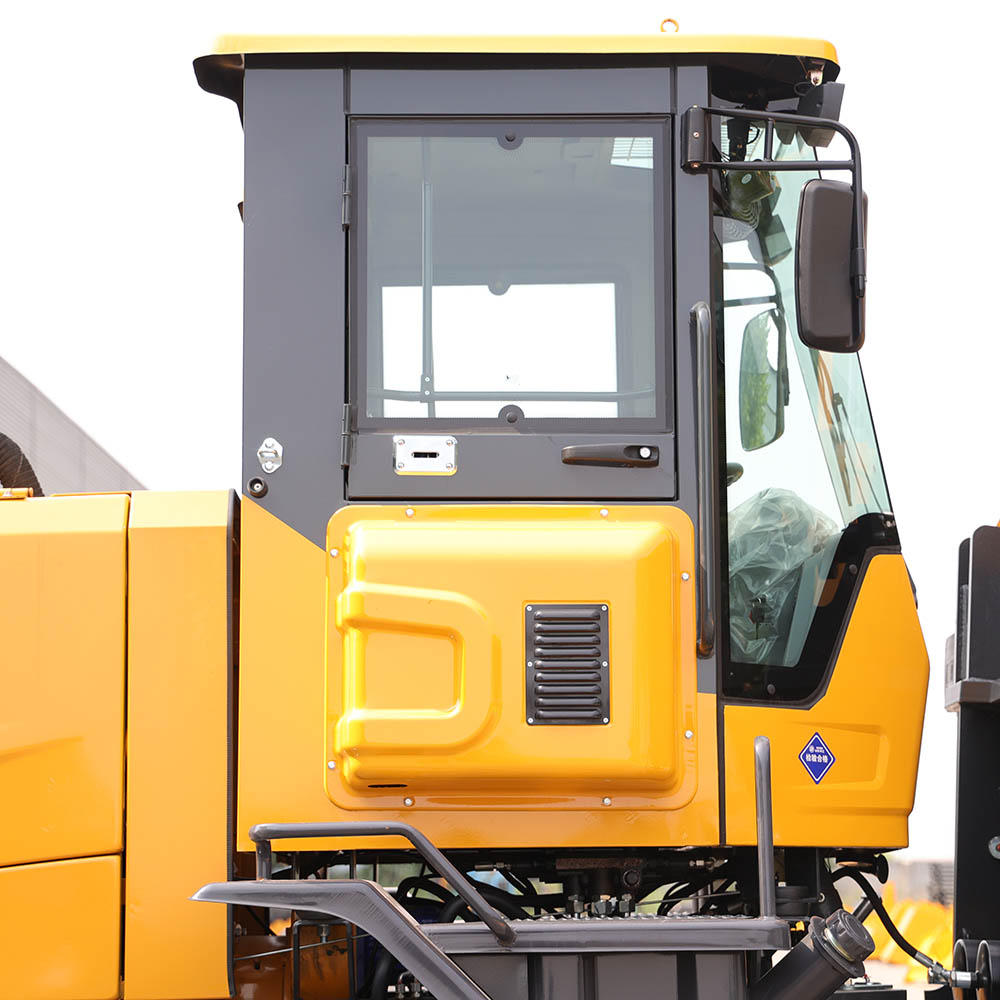

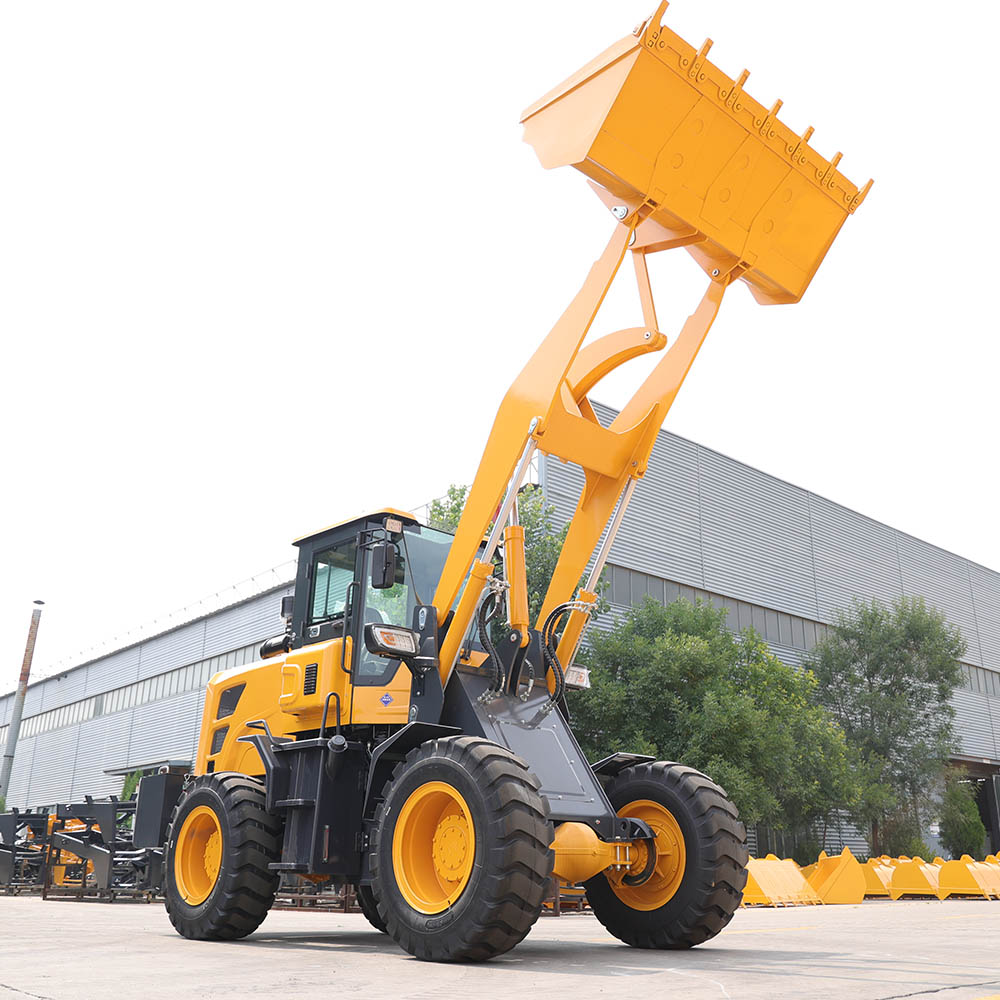

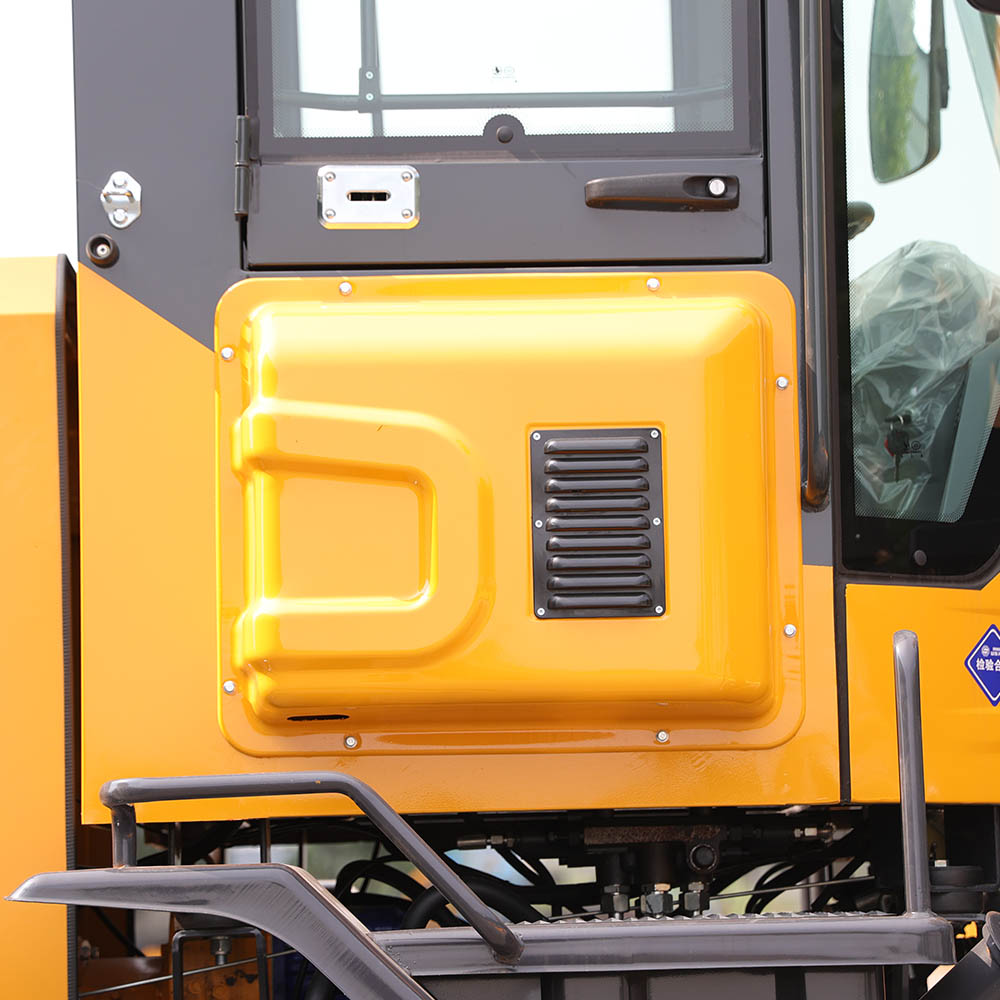

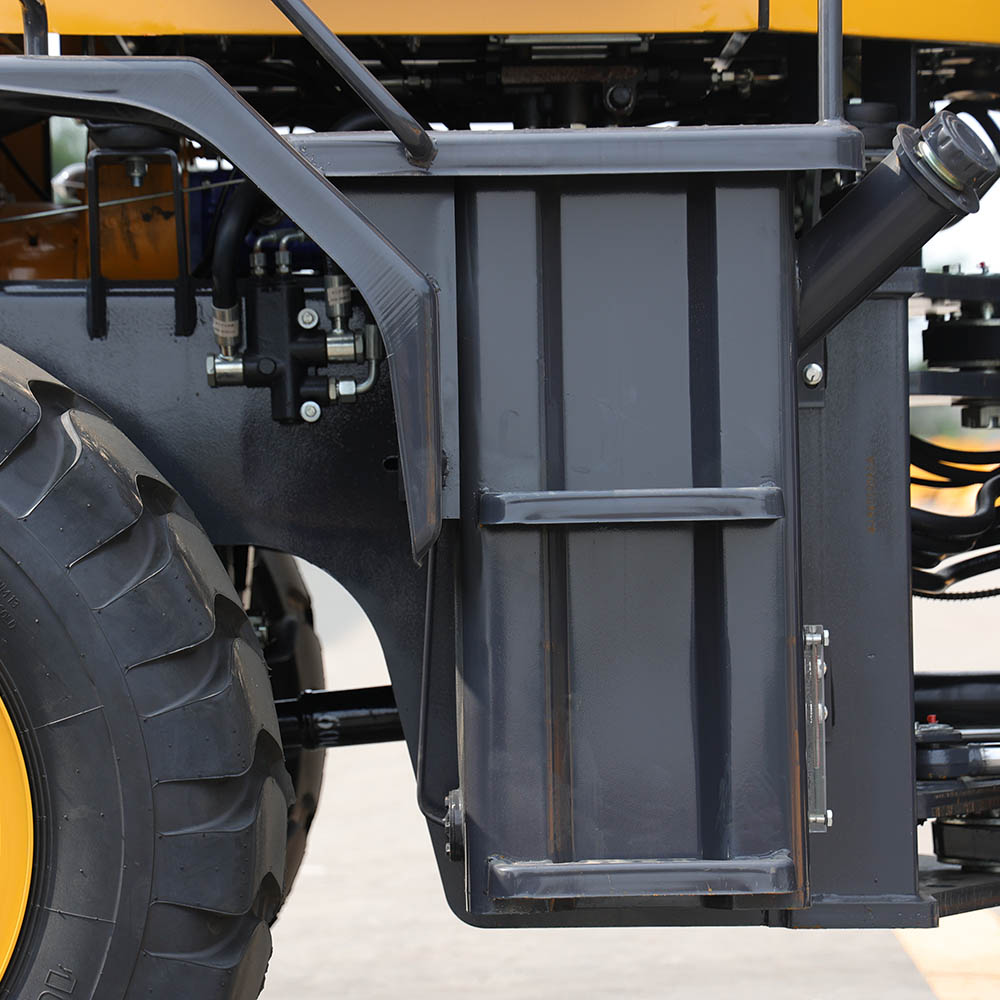

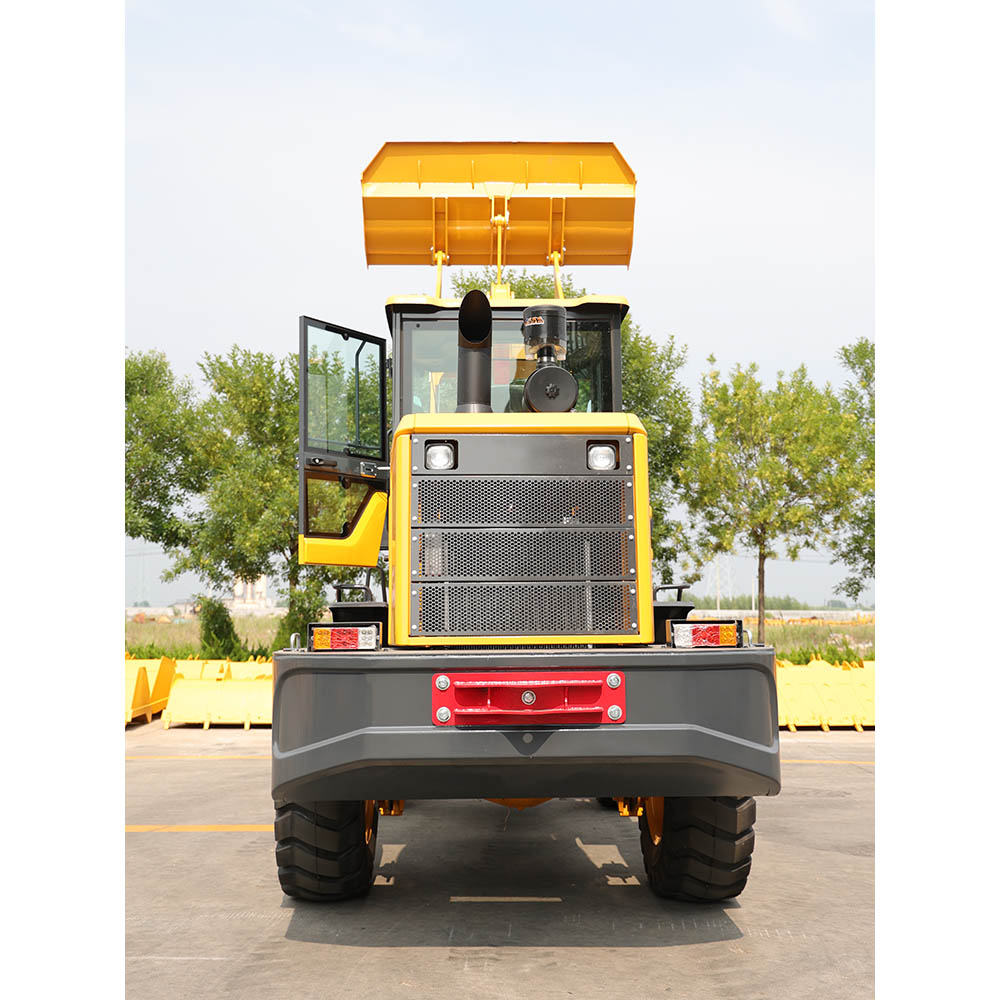

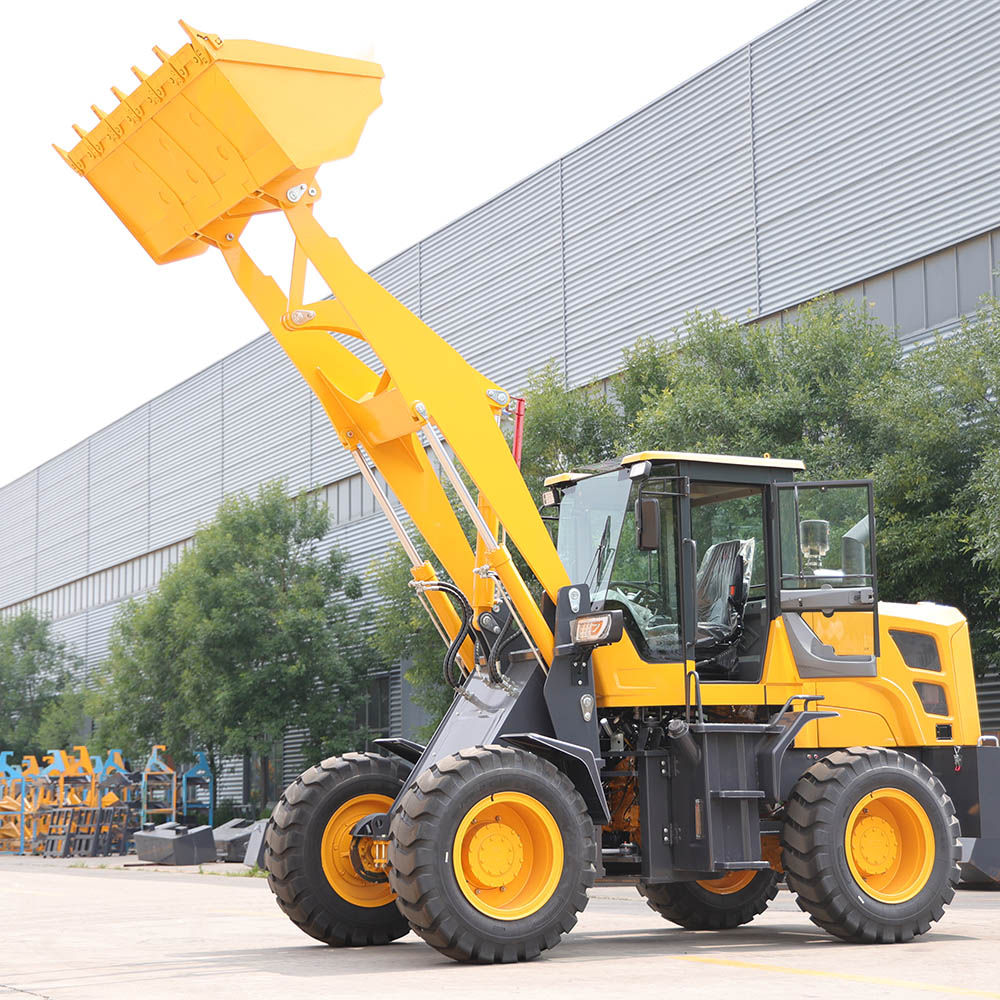

948-YF35 Large Wheel-Side Loader

948-YF35 Large Wheel-Side Loader

A loader is a type of earthmoving machinery widely used in construction projects such as highways, railways, buildings, hydropower, ports, and mines. It is mainly used for loading and unloading bulk materials such as soil, sand, gravel, lime, and coal, and can also perform light digging operations on ores and hard soil. By changing different auxiliary working devices, it can also perform bulldozing, lifting, and loading and unloading operations of other materials such as timber.
WhatsApp:+86 18963088836
Email:coco@jcxcsteel.com
Contact Us

Product Description



The 948-YF35 wheel-side loader is a large-tonnage wheel loader designed specifically for heavy-duty working conditions and complex operating environments, with a rated load capacity covering 3.5–4 tons. This model integrates the mature platform of the 948 series loaders with the YF35's large wheel-side reinforced drive axle technology, resulting in a robust structure, powerful engine, and excellent maneuverability. It is widely applicable to heavy-duty shoveling and transporting operations in mining, construction sites, sand and gravel quarries, port storage yards, and large farms.

Product Parameters



YF35-948 Product: Key Technical Parameters
Overall Dimensions
Length x Width x Height6580 × 2250 × 3020
Wheelbase2540
Wheel Track1680
Dumping Height3500
Dumping Distance1200
Minimum Ground Clearance360
Turning Radius3400
Machine Specifications
Bucket Width2250
Bucket Capacity1.2 m³
Rated Load2500 kg
Operating Weight5230 (Empty, with counterweight)
Central Lift Cylinder70 / 130
Side Lift Cylinders60 / 110
Steering Cylinders40 / 80
Standard Tires16/70-24
Engine
Brand / ModelYunnei 4108 Turbocharged
Rated Power (kW / rpm)92 kW
Max. Torque (N·m)385
Cylinders / Valves4/8
Compression Ratio17.5:1
Displacement (L)4.328
AspirationTurbocharged
Transmission System
Torque Converter Size300
Torque Converter TypeSplit-type
Transmission TypeHydraulic Shift
Gears2+2
Fuel Tank Capacity90 L
Fuel Tank Dimensions380 × 330 × 730
Standard AxleCast Steel Large Wheel Hubs
Max. Gradeability (°)30
Hydraulic System
Standard ConfigurationSingle-Lever Control
Lifting Time5.5
Lowering Time4.5
Braking System
Service BrakeAir Brakes
Parking BrakeMechanical Handbrake
Max. Tractive Force (kN)25
Other
Main Gear PumpCBT2080
Travel PumpCB-FC18
Steering UnitBZZ250C
Control Valve20A Two-Section, Two-Valve
Travel Speed30
Boom Thickness30
Front Transition Plate Thickness45
Rear Transition Plate Thickness30
