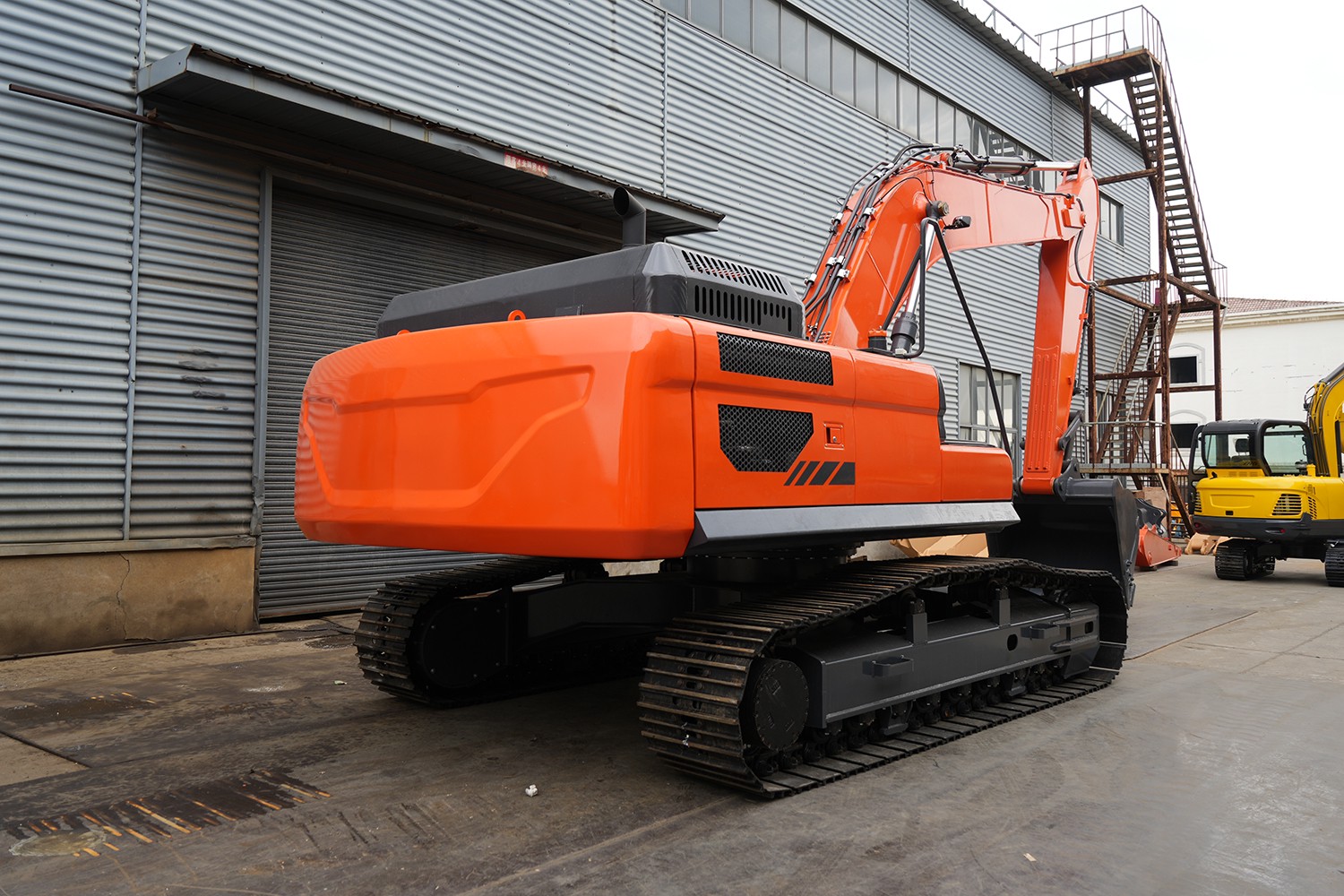

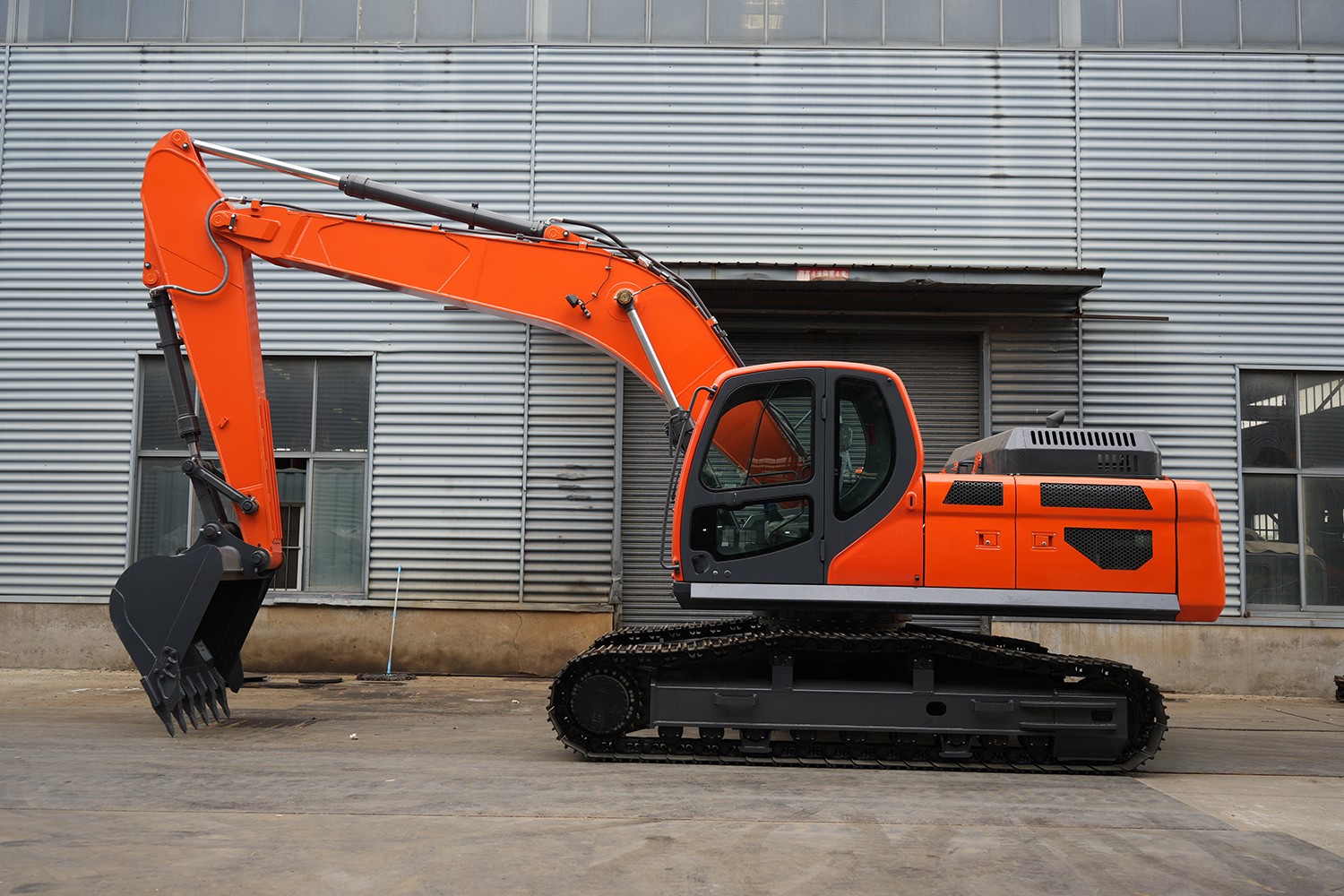

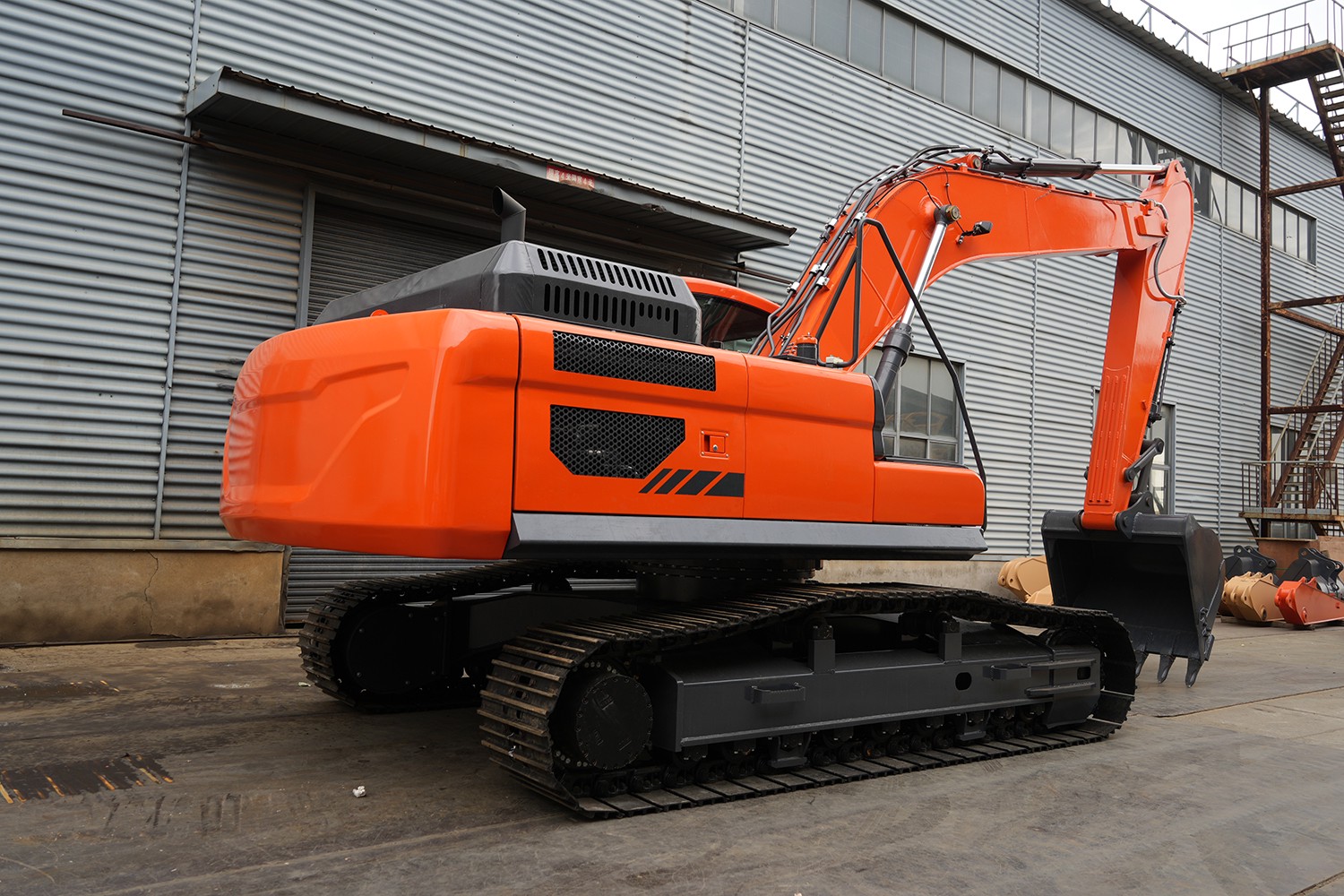

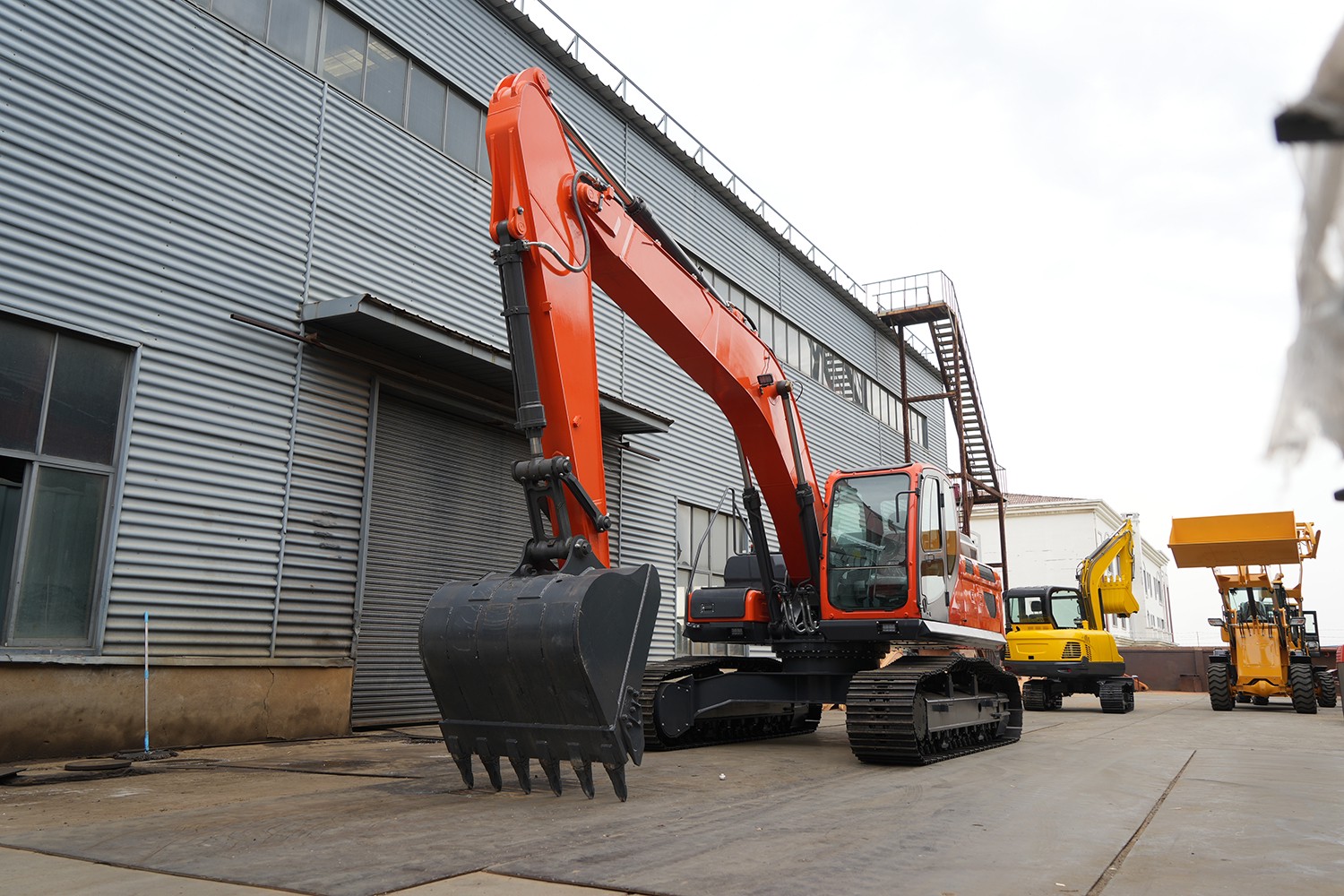

Excavator-230

Excavator-230

Operating Weight (t) 23-ton Class
Bucket Capacity (m³) 1.1–1.2
Boom Length (mm) 5.7
Arm Length (mm) 2.9
Tonnage (t) 23-ton Class
Power Conventional Power
Bucket Backhoe
Performance
Swing Speed ​​(rpm) 12.4
Swing Torque (kN·m) 79
Travel Speed ​​(km/h) 4.9 / 3.1
Ground Pressure (kPa) 48
WhatsApp:+86 18963088836
Email:coco@jcxcsteel.com
Contact Us

Product Description



The WGQ-230 is a 23-ton hydraulic tracked excavator designed for high-volume earthmoving, rock handling, and heavy infrastructure projects. Combining a powerful engine, optimized hydraulic system, and reinforced chassis, it delivers exceptional digging power, fast work cycles, and long-lasting durability, even in the most demanding conditions.

Product Parameters



SpecificationsSpecifications
Operating Weight (t)23-ton Class
Bucket Capacity (m³)1.1–1.2
Boom Length (mm)5.7
Arm Length (mm)2.9
Tonnage (t)23-ton Class
PowerConventional Power
BucketBackhoe
Performance
Swing Speed (rpm)12.4
Swing Torque (kN·m)79
Travel Speed (km/h)4.9 / 3.1
Ground Pressure (kPa)48
Bucket Digging Force(kN) 165 / 177.9
Arm Digging Force(kN) 107.5 / 115.3
Power SystemDiesel Engine
Engine ModelCummins
Rated Power (kW/rpm)135 kW / 2000 rpm
Displacement (L)6.7 L
Number of Cylinders6
Operation Type4-stroke, Water-cooled, Electronic Injection
Hydraulic System
Main Pump TypeVariable Displacement Axial Piston Pump
Main Relief Pressure Setting (MPa)Standard 27.9 / Boost 34.3
Main Pump Max. Flow Rate(L/min) 2 × 109
Travel Hydraulic Circuit(MPa) 32.5
Swing Hydraulic Circuit (MPa)27.9
Pilot Pump Flow Rate (L/min)28.5
Fuel Tank Capacity (L)350
Hydraulic Tank Capacity (L)210
Dimensions
Overall Transport Length (mm)9510
Overall Transport Width (mm)3000
Overall Transport Height (mm)3030 (to Boom Top)
Cab Height (mm)3030
Upperstructure Width (mm)2880
Track Ground Contact Length (mm)3500
Overall Track Length (mm)3630
Track Shoe Width (mm)600
Overall Track Width (mm)3000
Track Gauge (mm)2400
Minimum Ground Clearance (mm)480
Tail Swing Radius (mm)2750
Working Range
Max. Digging Radius (mm)9910
Max. Digging Radius at Ground Level (mm)9735
Max. Digging Depth (mm)6630
Max. Digging Height (mm)9660
Max. Dumping Height (mm)6810
Max. Vertical Digging Depth (mm)6045


Packaging And Transportation

Factory Show



  • 未标题-2
  • 未标题-1
  • 1770099593877195032174931968
  • 1770099592877195030983749632
  • 1770099592877195027796086784
  • 1770099590877195021143920640

FAQ



Contact Us



SUBMIT

Quality and After-sale Assurance

As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.

We promises that the name, model, specification and quantity of the equipment comply with the technical agreement. Guarantee that the equipment is excellent in craftsmanship, free from defects in design, materials, and workmanship, and meet customer needs.

We will provide service on installation and commissioning , no worry about after sales.

All equipment is delivered after passing the quality inspection and debugging.
