Excavator-260

Excavator-260

Specifications Parameters
Operating Weight (t) 25
Bucket Capacity (m³) 1.4
Boom Length (mm) 5.8
Arm Length (mm) 2.9
Tonnage (t) 26-ton Class
Power Conventional Power
Bucket Backhoe
WhatsApp:+86 18963088836
Email:coco@jcxcsteel.com
Contact Us

Product Description

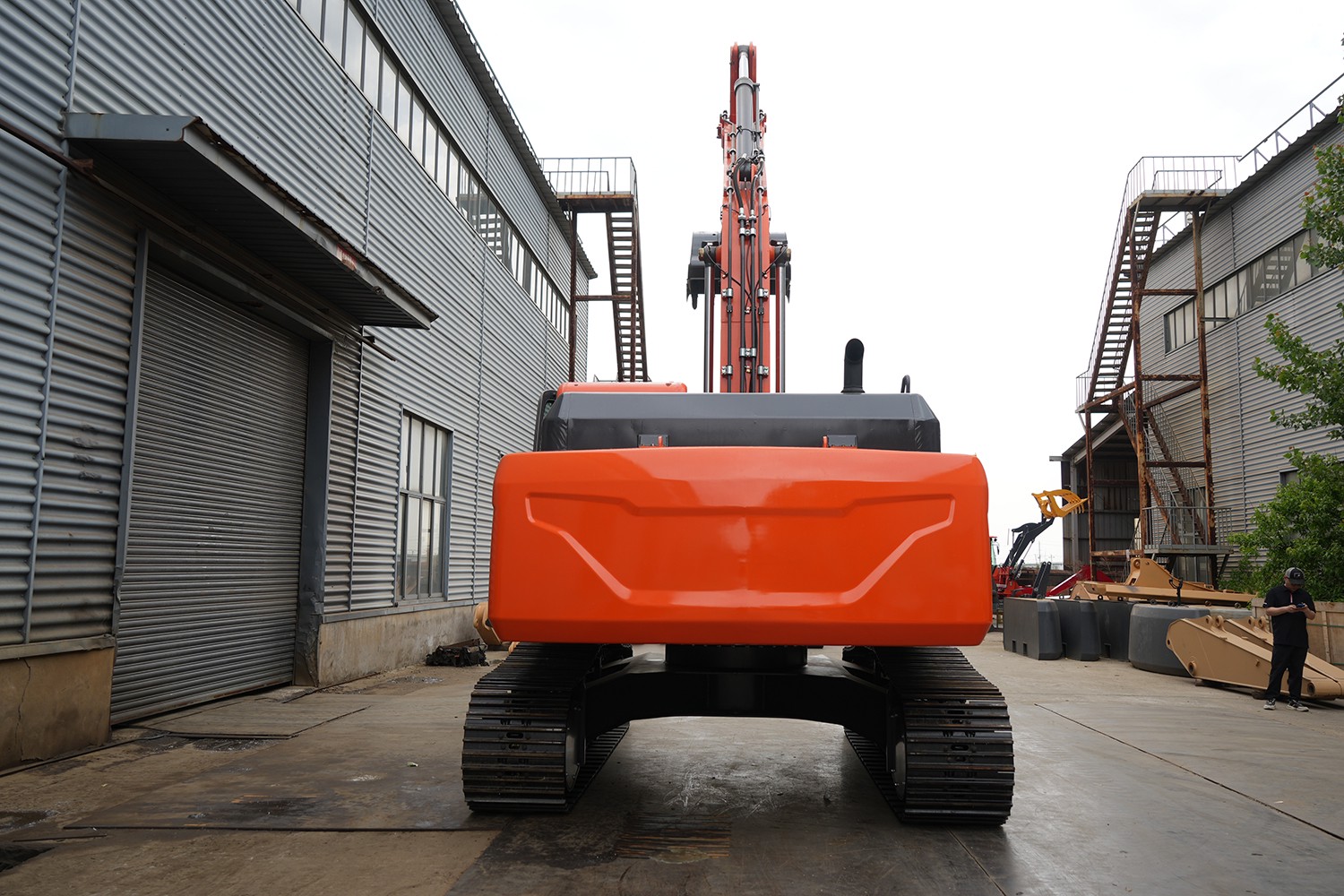

The WGQ-260 is a 26‑ton class hydraulic crawler excavator built for demanding earthmoving, quarry work, and large-scale construction projects. It delivers the power and durability of a heavier machine while maintaining the efficiency and maneuverability needed for job site versatility. With a high-torque engine, a responsive hydraulic system, and a reinforced undercarriage, the WGQ-260 achieves fast cycle times, high digging forces, and long service life in abrasive conditions.

Product Parameters



SpecificationsParameters
Operating Weight (t)25
Bucket Capacity (m³)1.4
Boom Length (mm)5.8
Arm Length (mm)2.9
Tonnage (t)26-ton Class
PowerConventional Power
BucketBackhoe
Performance
Swing Speed (rpm)12.4
Swing Torque (kN·m)79
Travel Speed (km/h)4.9 / 3.1
Ground Pressure (kPa)48
Bucket Digging Force(kN) 165 / 177.9
Arm Digging Force(kN) 107.5 / 115.3
Power SystemDiesel Engine
Engine ModelCummins
Rated Power (kW/rpm)169 kW / 2000 rpm
Number of Cylinders6
Operation Type4-stroke, Water-cooled, Direct Injection
Hydraulic System
Main Pump TypeVariable Displacement Axial Piston Pump
Main Relief Pressure Setting (MPa)Standard 27.9 / Boost 34.3
Main Pump Max. Flow Rate(l/min) 2 × 119
Travel Hydraulic Circuit(MPa) 32.5
Swing Hydraulic Circuit (MPa)27.9
Pilot Pump Flow Rate (L/min)28.5
Fluid Capacities
Fuel Tank (L)350
Hydraulic Tank (L)210
DimensionsParameters
Overall Transport Length (mm)9610
Overall Transport Width (mm)3200
Overall Transport Height (mm)3030 (to top of boom)
Cab Height (mm)3030
Upper Structure Width (mm)2895
Track Ground Contact Length (mm)3600
Overall Track Length (mm)3945
Track Shoe Width (mm)600
Overall Track Width (mm)3200
Track Gauge (mm)2500
Minimum Ground Clearance (mm)480
Tail Swing Radius (mm)2850
Working Range
Max. Digging Radius (mm)9950
Max. Digging Radius at Ground Level (mm)9820
Max. Digging Depth (mm)6685
Max. Digging Height (mm)9695
Max. Dumping Height (mm)6850
Max. Vertical Digging Depth (mm)6095
