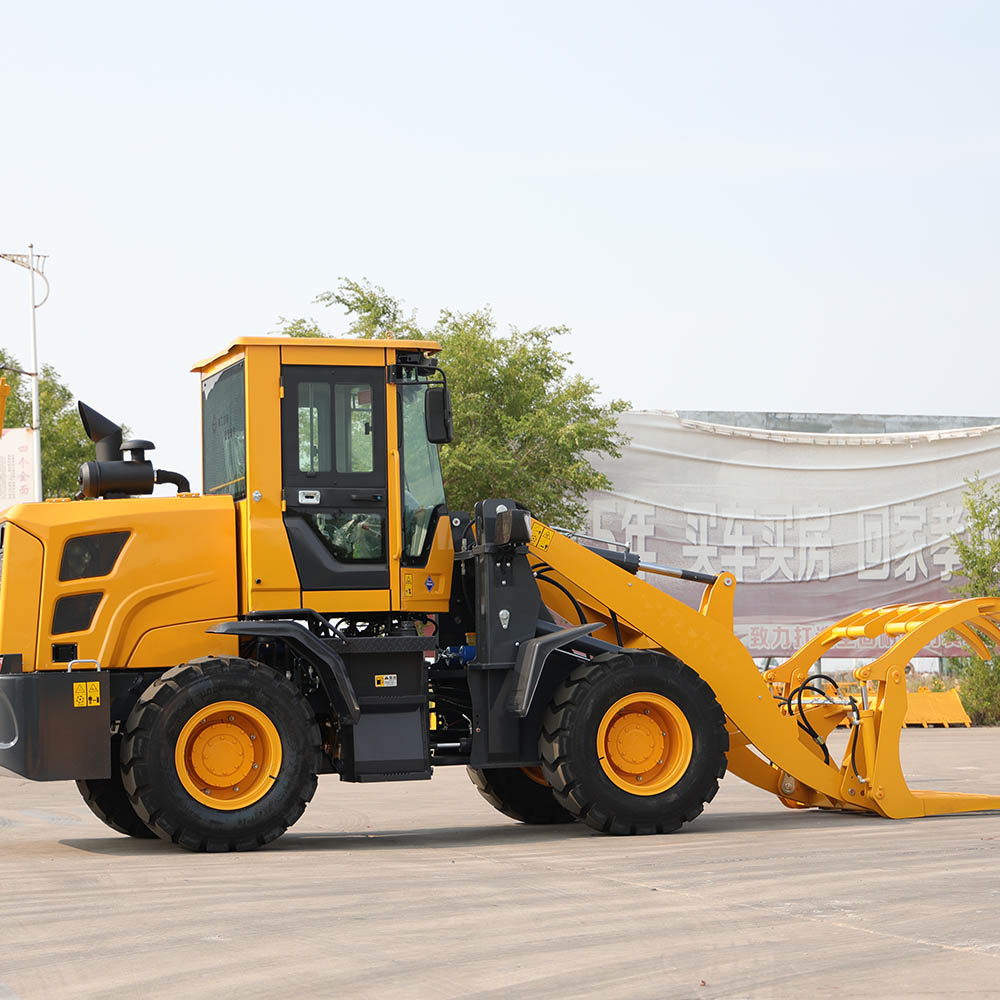

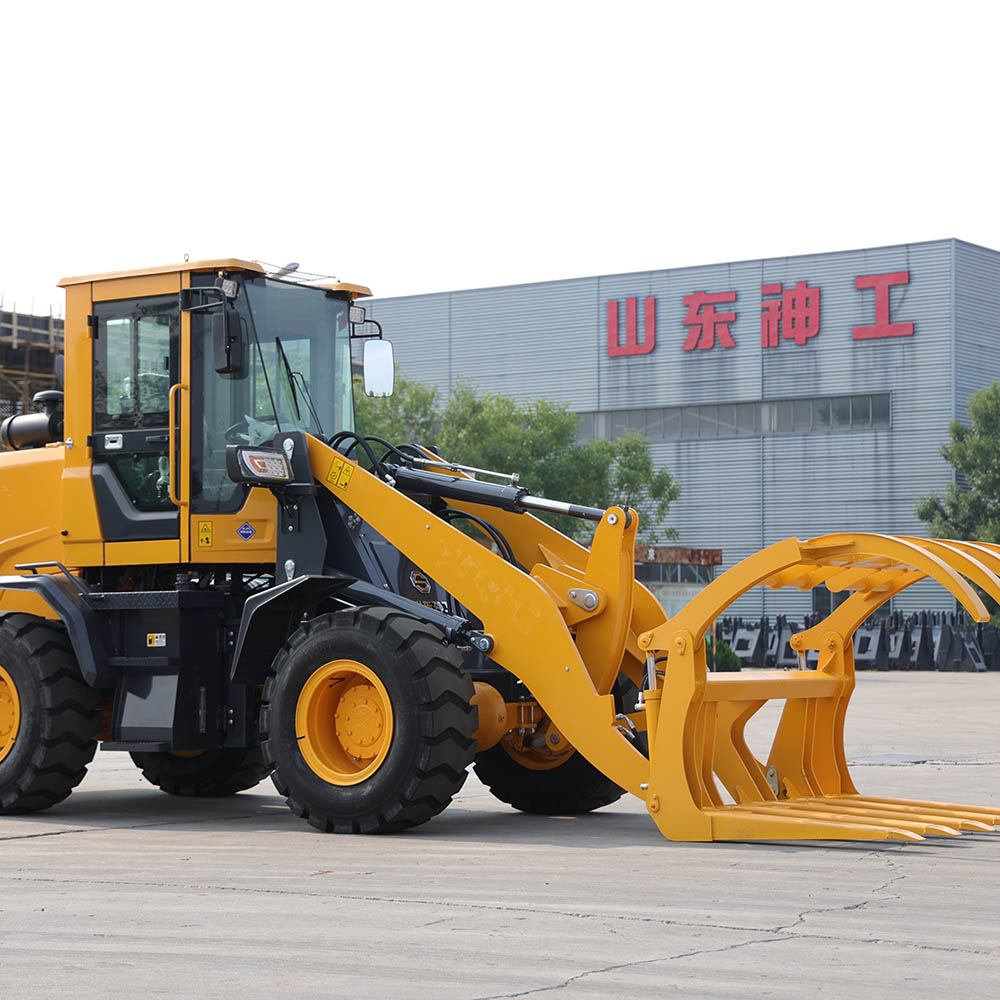

Type 942 Log Loader

Type 942 Log Loader

A loader is a type of earthmoving machinery widely used in construction projects such as highways, railways, buildings, hydropower, ports, and mines. It is mainly used for loading and unloading bulk materials such as soil, sand, gravel, lime, and coal, and can also perform light digging operations on ores and hard soil. By changing different auxiliary working devices, it can also perform bulldozing, lifting, and loading and unloading operations of other materials such as timber.
WhatsApp:+86 18963088836
Email:coco@jcxcsteel.com
Contact Us

Product Description

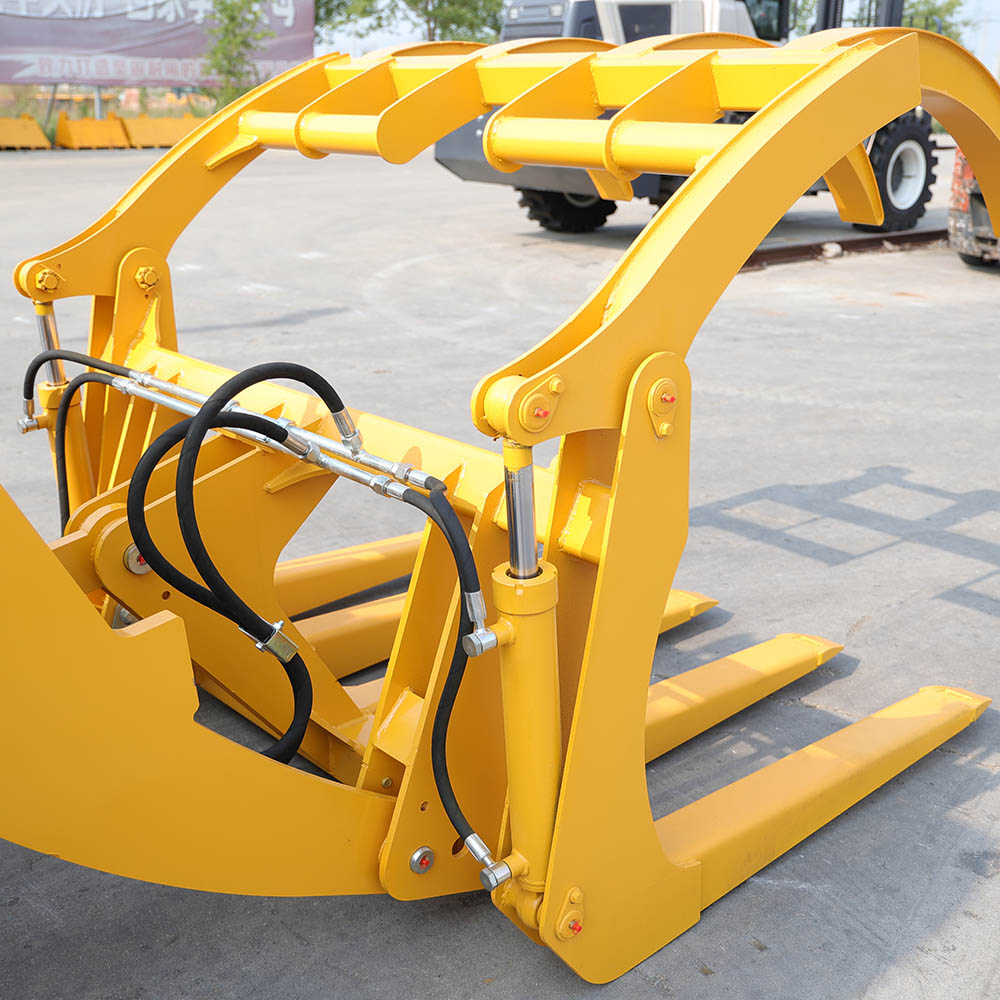

The Model 942 log loader is a wheeled loader specifically designed and developed for timber loading and unloading, forestry handling, and multi-functional bulk material operations. It integrates shoveling and grabbing functions and is widely applicable to various operating environments such as forest farms, timber processing plants, construction sites, farms, livestock farms, and sand and gravel yards. This model features four-wheel drive, an articulated frame structure, and is equipped with a dedicated log grappling tool (log grappler/log fork), enabling rapid grabbing, loading, unloading, and transfer of materials such as timber, straw, and forage. It is an ideal piece of equipment for forestry and agricultural material handling.

Product Parameters



HX35-942 Product: Key Technical Parameters
Overall Dimensions
Length x Width x Height5900 × 2050 × 2850
Wheelbase2340 mm
Wheel Track1550 mm
Dumping Height3560 mm
Dumping Distance900 mm
Minimum Ground Clearance310 mm
Turning Radius3400 mm
Machine Specifications
Bucket Width2050 mm
Bucket Capacity1.2 m³
Rated Load2000 kg
Operating Weight4350 kg (Empty, with Counterweight)
Central Lift CylinderInner 60 / Outer 110
Side Lift CylindersInner 50 / Outer 102
Steering CylindersInner 35 / Outer 73
Standard Tires16/70-20
Engine
Make / ModelHuadong 4102 Turbocharged
TypeInline 4-Cylinder
Rated Power76 kW
Rated Speed2400 rpm
Weight360 kg
Transmission System
Torque Converter Size280
Torque Converter TypeSplit-Type
Transmission TypeHydraulic Shift
Gears2 Forward / 2 Reverse (Dual High/Low Speeds)
Fuel Tank Capacity85 L
Fuel Tank Dimensions420 × 300 × 750
Standard AxleZhongda Cast Steel Axle (Wheel-Side Reduction)
Hydraulic System
Standard ConfigurationSingle-Lever Operation
Lifting Time6S
Lowering Time5S
Braking System
Service BrakeAir Brakes
Parking BrakeMechanical Handbrake
Other Components
Main Gear Pump / Working PumpCB-2063
Travel PumpCBF-18
Steering UnitNBF200
Control Valve20A
Travel Speed35 km/h
Boom Thickness30 mm
Front Transition Plate Thickness40 mm
Rear Transition Plate Thickness30 mm
