942 HX35 Semi-Solid Tire Loader

942 HX35 Semi-Solid Tire Loader

A loader is a type of earthmoving machinery widely used in construction projects such as highways, railways, buildings, hydropower, ports, and mines. It is mainly used for loading and unloading bulk materials such as soil, sand, gravel, lime, and coal, and can also perform light digging operations on ores and hard soil. By changing different auxiliary working devices, it can also perform bulldozing, lifting, and loading and unloading operations of other materials such as timber.
WhatsApp:+86 18963088836
Email:coco@jcxcsteel.com
Contact Us

Product Description

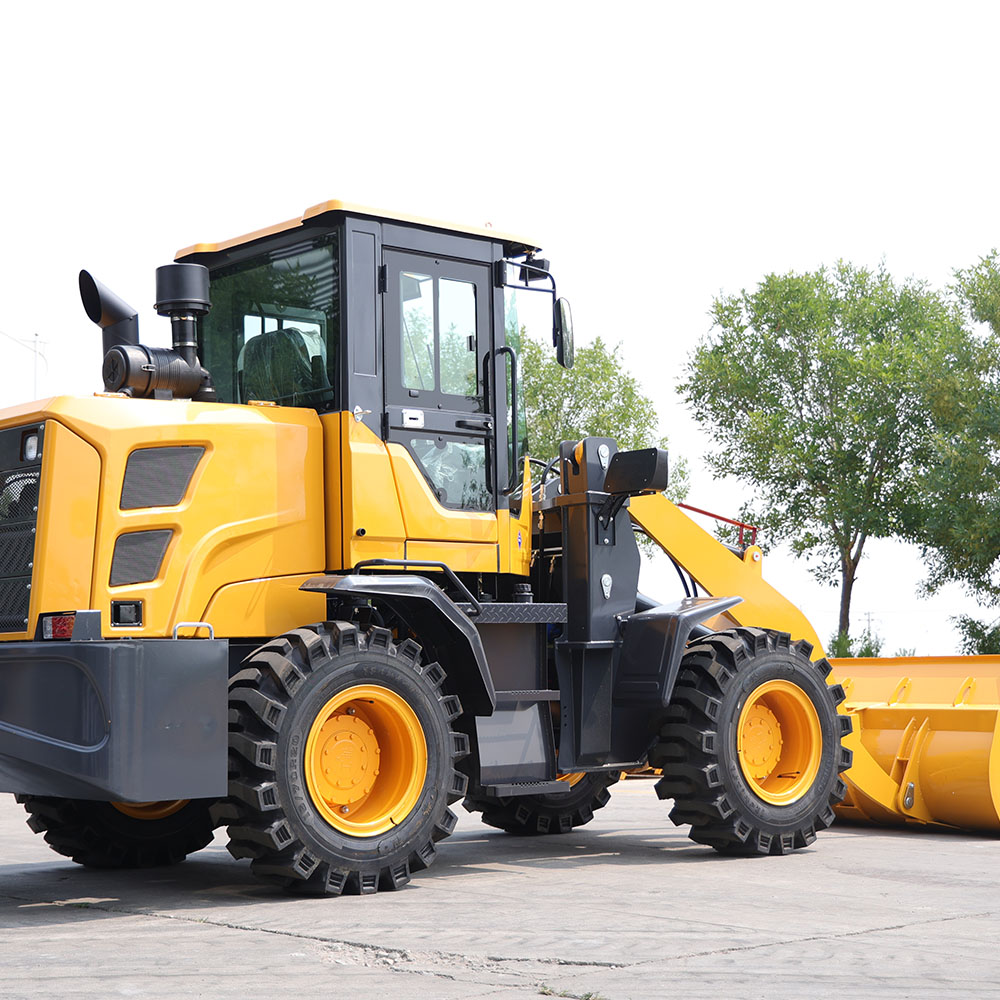

The 942 HX35 semi-solid tire loader is a medium-sized wheel loader designed and developed for heavy-duty working conditions and harsh environments. It integrates the mature platform of the 942 series loaders with the enhanced configuration of the HX35, offering a rated load capacity of 2–4 tons. This model is widely applicable to heavy-duty shoveling and transporting operations in mining, construction sites, sand and gravel yards, port storage yards, steel mills, and large farms.


The most significant feature of this model is its standard semi-solid tires—combining the elasticity and comfort of pneumatic tires with the puncture resistance and high load-bearing capacity of solid tires, performing exceptionally well in puncture-prone conditions involving gravel, metal scrap, and construction waste. The semi-solid tires require no inflation and are maintenance-free, effectively solving the problems of frequent tire blowouts and downtime for tire replacements associated with traditional pneumatic tires in harsh conditions. This makes it particularly suitable for export to mines, steel mills, and construction sites.


Product Parameters



HX35-942 Product: Key Technical Parameters
Overall Dimensions
Length x Width x Height5900 × 2050 × 2850
Wheelbase2340 mm
Wheel Track1550 mm
Dumping Height3560 mm
Dumping Distance900 mm
Minimum Ground Clearance310 mm
Turning Radius3400 mm
Machine Specifications
Bucket Width2050 mm
Bucket Capacity1.2 m³
Rated Load2000 kg
Operating Weight4350 kg (Empty, with Counterweight)

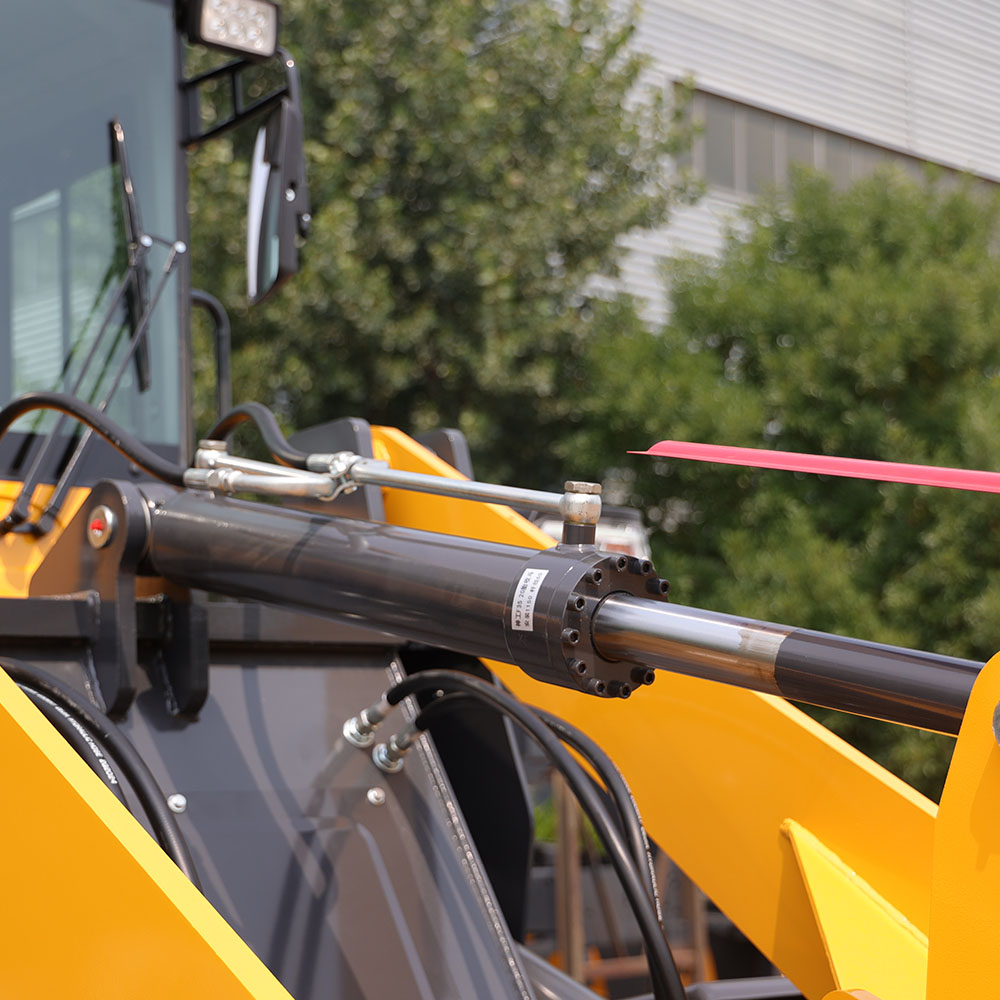

Central Lift CylinderInner 60 / Outer 110
Side Lift CylindersInner 50 / Outer 102
Steering CylindersInner 35 / Outer 73
Standard Tires16/70-20
Engine
Make / ModelHuadong 4102 Turbocharged
TypeInline 4-Cylinder
Rated Power76 kW
Rated Speed2400 rpm
Weight360 kg
Transmission System
Torque Converter Size280
Torque Converter TypeSplit-Type
Transmission TypeHydraulic Shift
Gears2 Forward / 2 Reverse (Dual High/Low Speeds)
Fuel Tank Capacity85 L
Fuel Tank Dimensions420 mm (300*750)

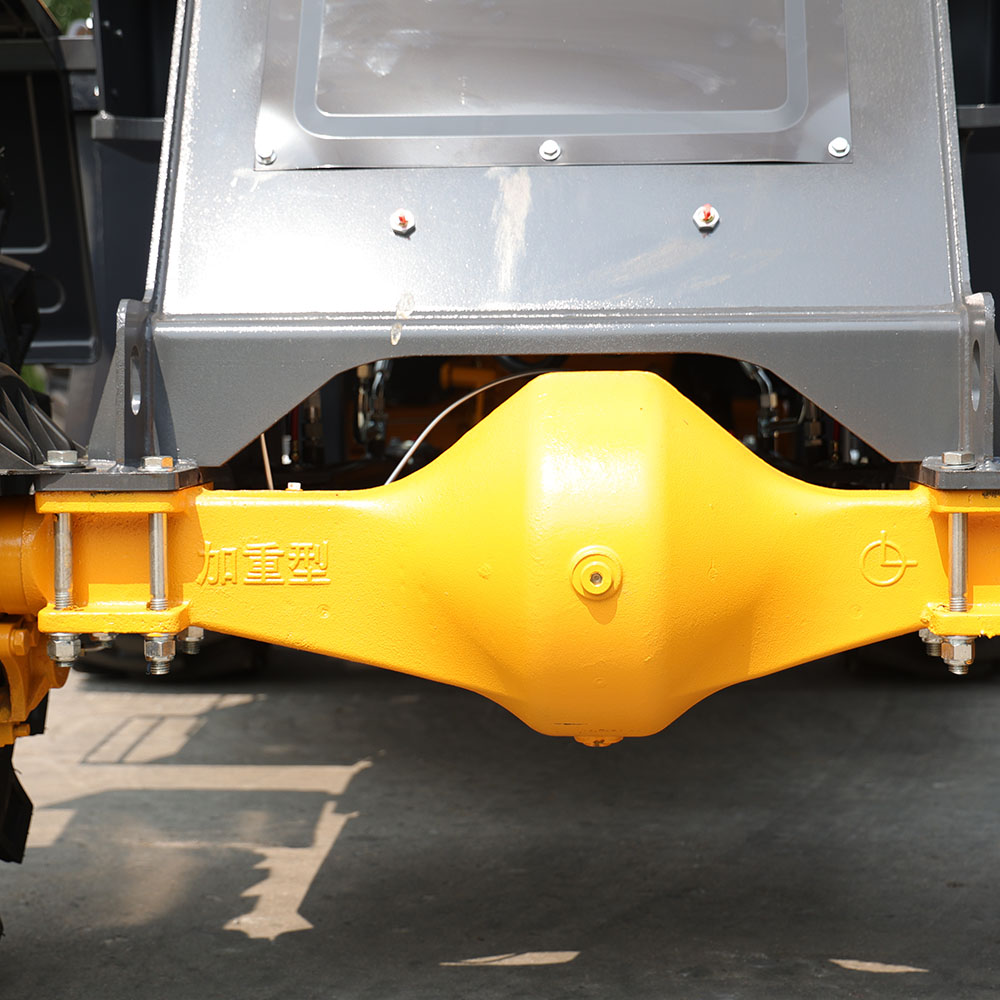

Standard AxleZhongda Cast Steel Axle (Wheel-Side Reduction)
Hydraulic System

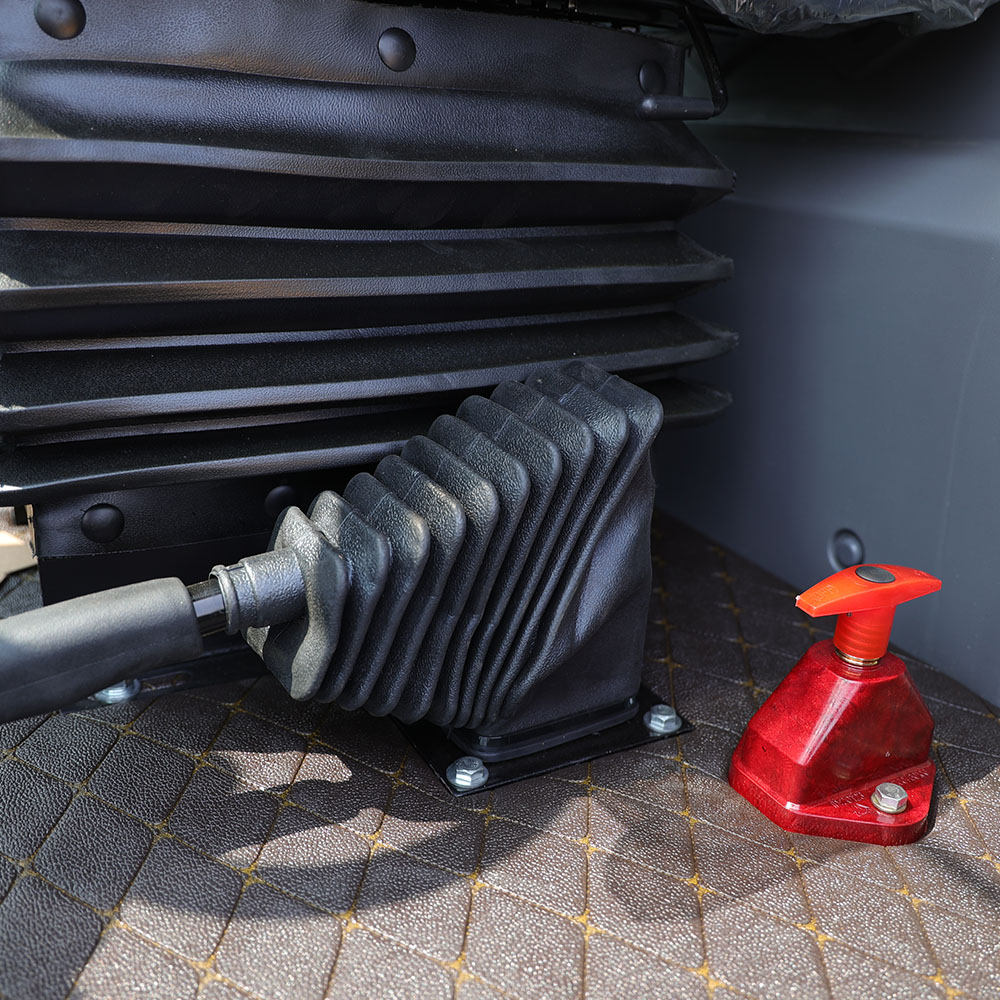

Standard ConfigurationSingle-lever operation
Lifting Time6s
Lowering Time5s
Braking System
Service BrakeAir brakes
Parking BrakeMechanical parking brake
Other Components
Main Gear Pump / Working PumpCB-2063
Travel PumpCBF-18
Steering UnitNBF200
Control Valve20A
Travel Speed35 km/h
Boom Thickness30 mm
Front Transition Plate Thickness40 mm
Rear Transition Plate Thickness30 mm

Packaging And Transportation


Packing and Shipping

We have four ways of delivery. Low cost, large volume, long-distance transportation

1.Container:

(1)Simplify packaging and save a lot of packaging costs

(2)Reduce damage and poor quality of goods and improve the quality of goods

(3)Reduce operating expenses and transport costs

2.Bulk cargo ship:

(1)Extremely long time in port

(2) Fast pace, slow speed, less port, long continuous voyage
3.Flat rack ship:

Large cargo capacity, low fuel consumption, good economic benefits;
4.RO RO ship:

Ro-ro ships have greater adaptability, Carrying special cargo and large cargo

942 HX35 Semi-Solid Tire Loader


Factory Show



  • 未标题-2
  • 未标题-1
  • 1770099593877195032174931968
  • 1770099592877195030983749632
  • 1770099592877195027796086784
  • 1770099590877195021143920640

FAQ



Contact Us



SUBMIT

Quality and After-sale Assurance

As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.

We promises that the name, model, specification and quantity of the equipment comply with the technical agreement. Guarantee that the equipment is excellent in craftsmanship, free from defects in design, materials, and workmanship, and meet customer needs.

We will provide service on installation and commissioning , no worry about after sales.

All equipment is delivered after passing the quality inspection and debugging.
