A08L Short King Kong

A08L Short King Kong

A loader is a type of earthmoving machinery widely used in construction projects such as highways, railways, buildings, hydropower, ports, and mines. It is mainly used for loading and unloading bulk materials such as soil, sand, gravel, lime, and coal, and can also perform light digging operations on ores and hard soil. By changing different auxiliary working devices, it can also perform bulldozing, lifting, and loading and unloading operations of other materials such as timber.
WhatsApp:+86 18963088836
Email:coco@jcxcsteel.com
Contact Us

Product Description

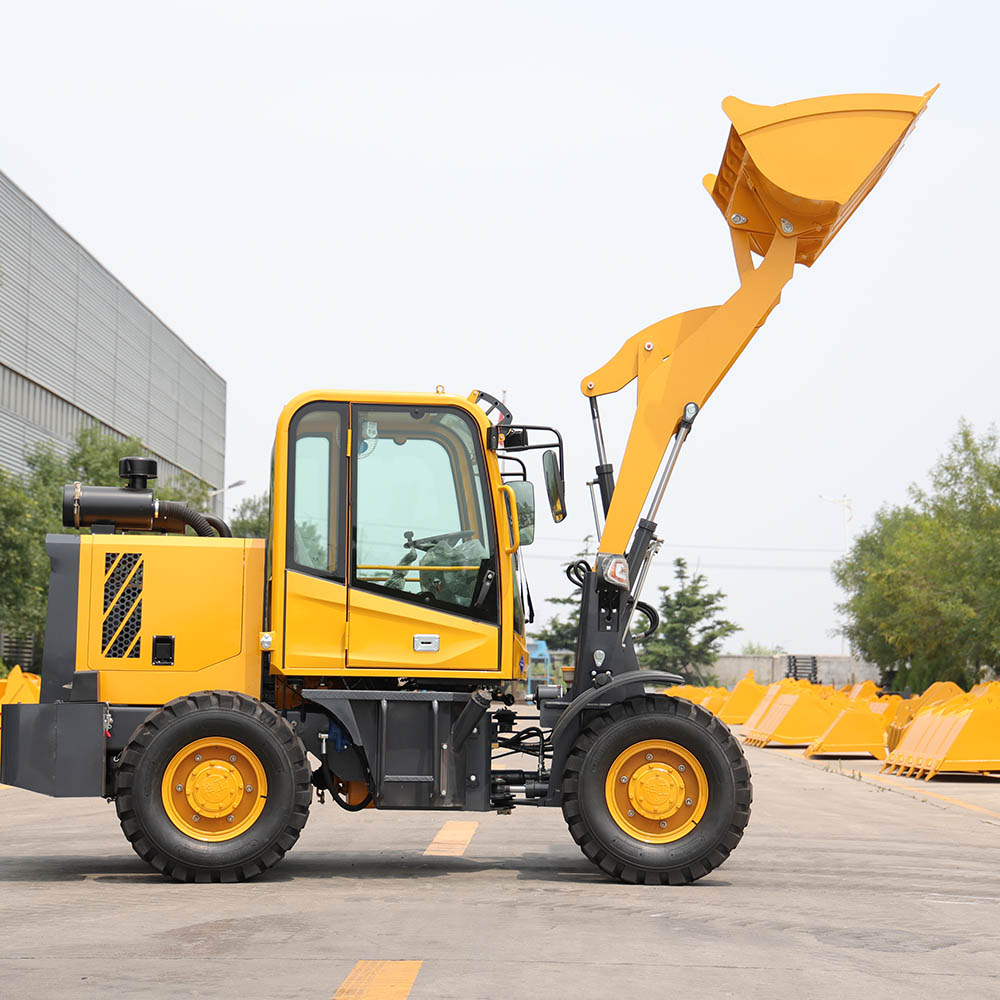

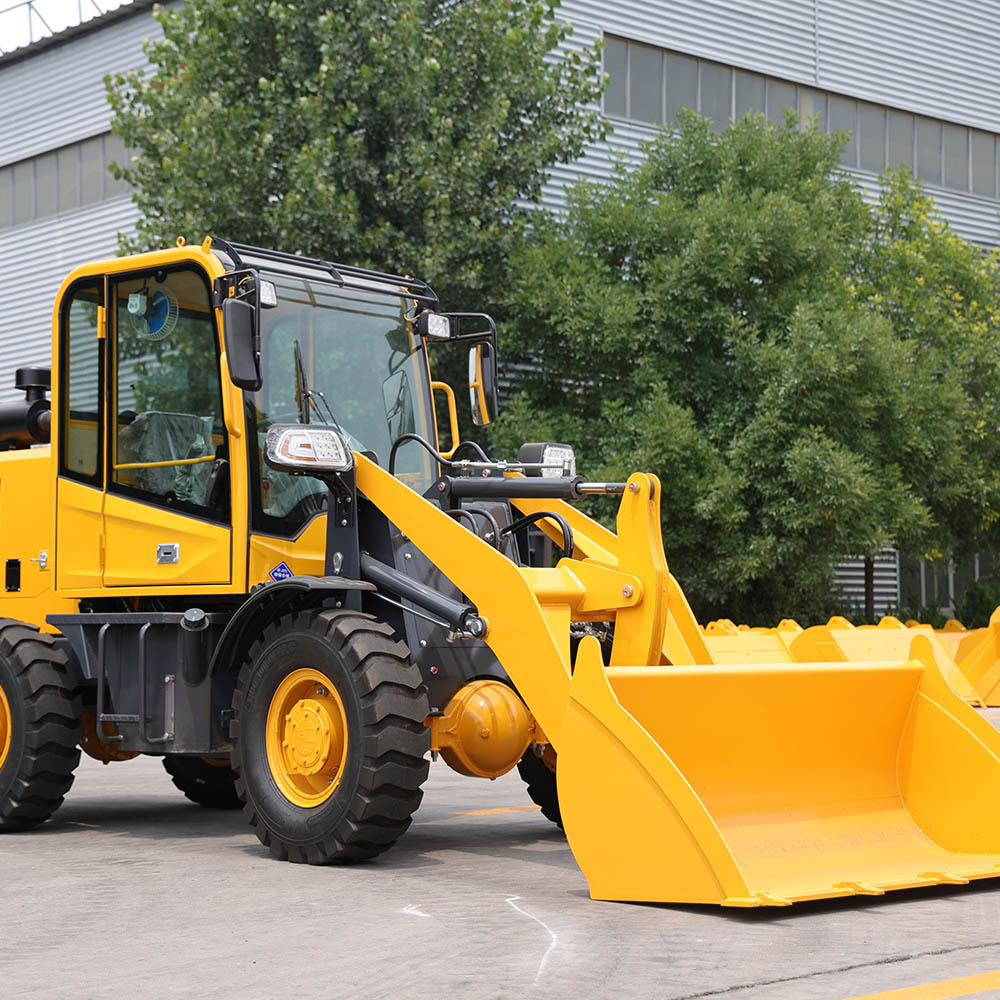

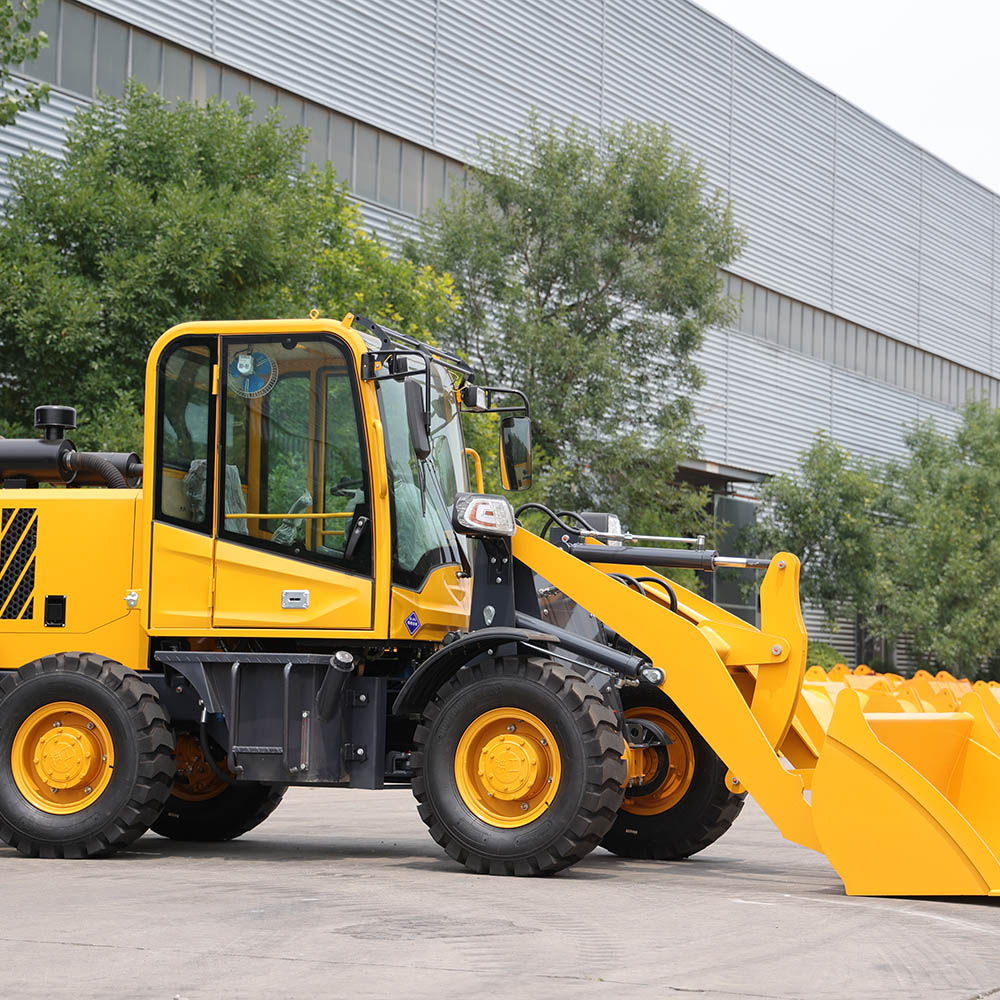

The A08L Low-profile loader is an ultra-low-profile mini loader with a rated load capacity of 0.8 tons, specifically designed and developed for operation in low-ceilinged spaces, narrow alleys, and complex terrain. This model features a compact body and low-profile structure, significantly reducing the overall height of the vehicle, enabling flexible operation in height-restricted environments such as tunnels, mines, basements, farms, and greenhouses.

Product Parameters




A08L — Main Technical Parameters
Overall Dimensions
Length x Width x Height (mm)4980 × 1550 × 2150
Wheelbase (mm)2050
Wheel Track (mm)1280
Dumping Height (mm)2500
Dumping Distance (mm)730
Minimum Ground Clearance (mm)250
Turning Radius (mm)2900
Machine Specifications
Bucket Width1550 mm
Bucket Capacity0.4 m³
Rated Load900 kg
Operating Weight2200 kg
Central Lift CylinderInner 35 / Outer 73
Side Lift CylindersInner 35 / Outer 73
Standard Tires1000-16
Engine
Brand / ModelHuadong 490
Rated Power40 kW
Rated Speed2400r/min
Type4-Stroke
Weight230
Transmission System
Torque Converter SizeIntegrated Type 265
Torque Converter TypeHydraulic Transmission
Transmission TypeHydraulic Shifting
Gears2 Forward / 2 Reverse Gears
Fuel Tank Capacity28 L
Fuel Tank Dimensions380 × 170 × 450
Standard AxleSmall Wheel-Side / Narrow Model
Hydraulic System
Standard ConfigurationMechanical
Lifting Time4
Lowering Time3
Braking System
Service BrakeAir Brakes
Parking BrakeMechanical Handbrake
Other Components
Main Gear PumpModel CBF-32
Travel Pump316
Steering Unit160
Control Valve16F
Travel Speed30 km/h
Boom Thickness166


Packaging And Transportation


Packing and Shipping

We have four ways of delivery. Low cost, large volume, long-distance transportation

1.Container:

(1)Simplify packaging and save a lot of packaging costs

(2)Reduce damage and poor quality of goods and improve the quality of goods

(3)Reduce operating expenses and transport costs

2.Bulk cargo ship:

(1)Extremely long time in port

(2) Fast pace, slow speed, less port, long continuous voyage
3.Flat rack ship:

Large cargo capacity, low fuel consumption, good economic benefits;
4.RO RO ship:

Ro-ro ships have greater adaptability, Carrying special cargo and large cargo

A08L Short King Kong


Factory Show



  • 未标题-2
  • 未标题-1
  • 1770099593877195032174931968
  • 1770099592877195030983749632
  • 1770099592877195027796086784
  • 1770099590877195021143920640

FAQ



Contact Us



SUBMIT

Quality and After-sale Assurance

As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.

We promises that the name, model, specification and quantity of the equipment comply with the technical agreement. Guarantee that the equipment is excellent in craftsmanship, free from defects in design, materials, and workmanship, and meet customer needs.

We will provide service on installation and commissioning , no worry about after sales.

All equipment is delivered after passing the quality inspection and debugging.
