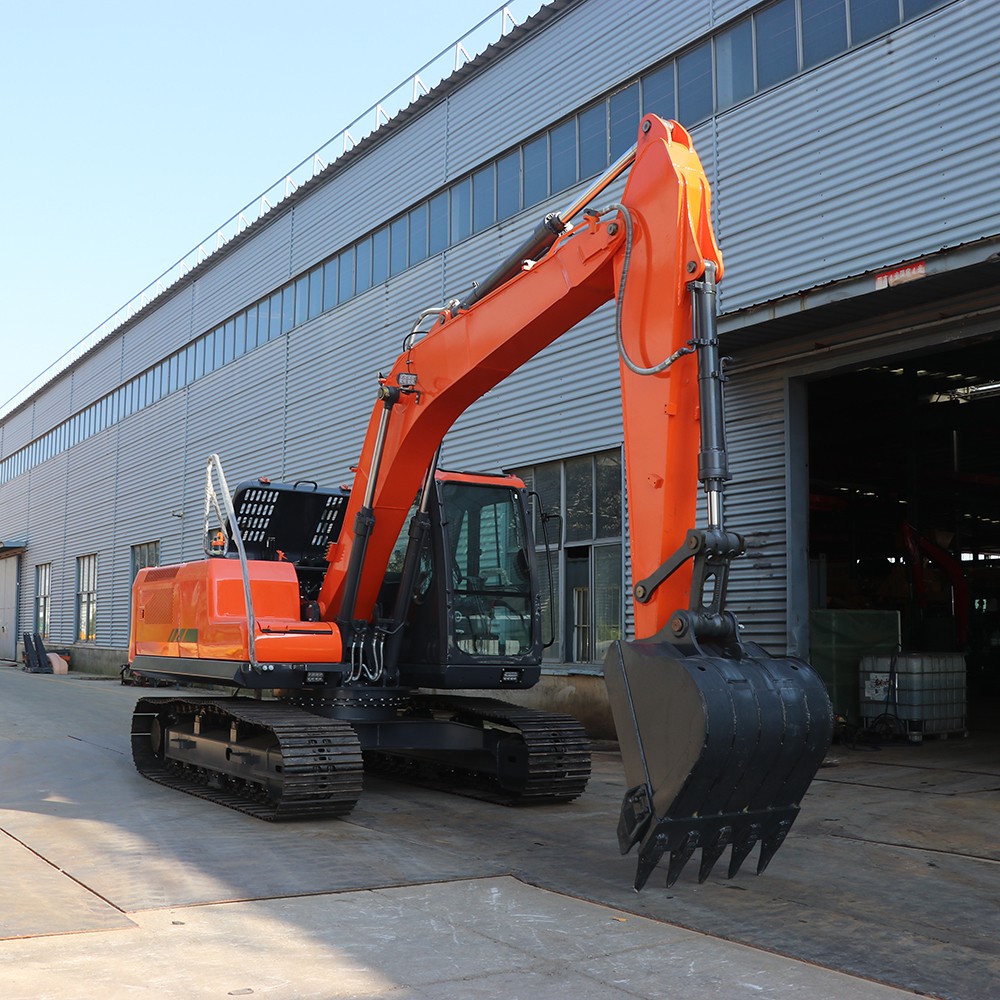

Excavator-160

Excavator-160

Operating Weight (kg) 15,000
Bucket Capacity (m³) 0.6–0.75
Boom Length (mm) 4,600
Arm Length (mm) 2,500
Tonnage (tons) 15

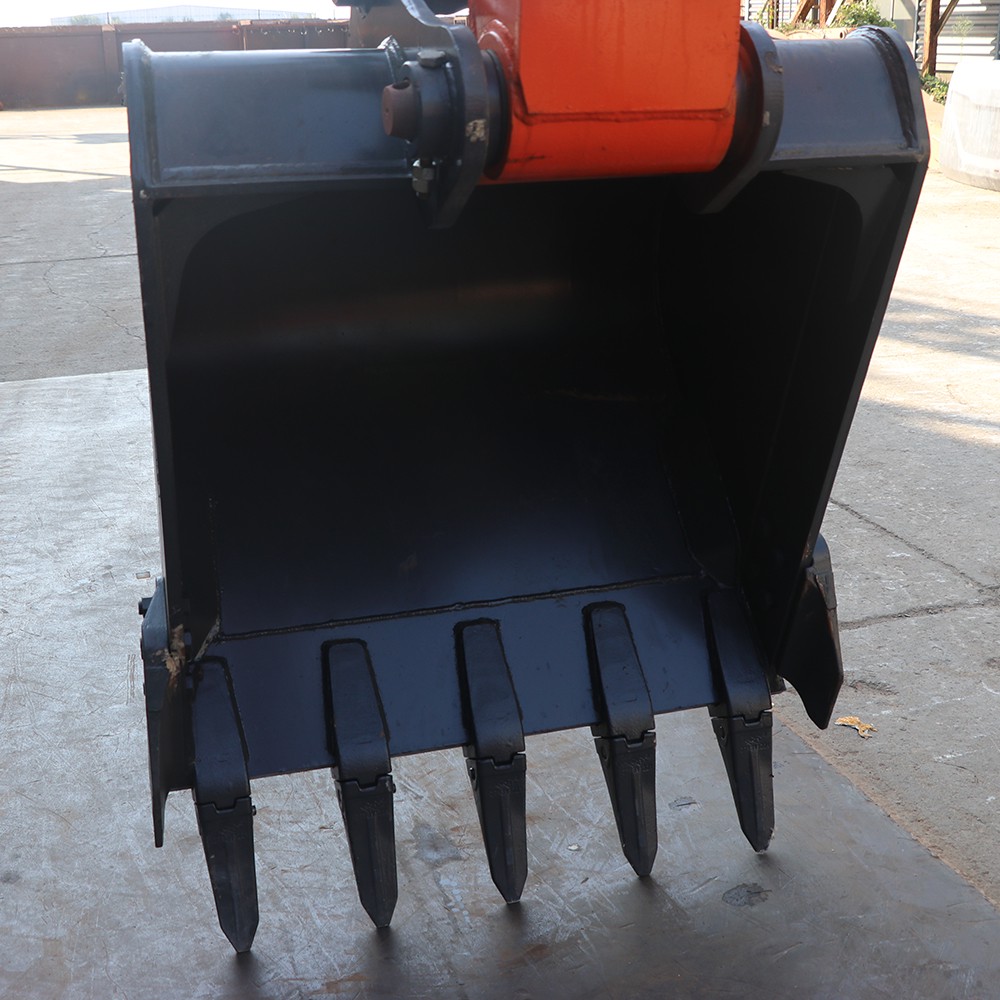

Bucket Backhoe
Power Conventional Power
Bucket Backhoe
Performance
Swing Speed ​​(rpm) 12
Travel Speed ​​(km/h) 3.4–4.9
Bucket Digging Force (kN) Standard 77.4 / Turbocharged 81.3
Arm Digging Force (kN) Standard 57.8 / Turbocharged 62
WhatsApp:+86 18963088836
Email:coco@jcxcsteel.com
Contact Us

Product Description



The WGQ-160 is a 16‑ton class hydraulic crawler excavator engineered to deliver high productivity, fuel efficiency, and operator comfort. With an optimal balance of digging force, lifting capacity, and stability, it is the ideal choice for medium‑scale construction projects, roadworks, utility installation, quarry loading, and land clearing.

Product Parameters



Specifications
Operating Weight (kg)15,000
Bucket Capacity (m³)0.6–0.75
Boom Length (mm)4,600
Arm Length (mm)2,500
Tonnage (tons)15
BucketBackhoe
PowerConventional Power
BucketBackhoe
Performance
Swing Speed (rpm)12
Travel Speed (km/h)3.4–4.9
Bucket Digging Force (kN)Standard 77.4 / Turbocharged 81.3
Arm Digging Force (kN)Standard 57.8 / Turbocharged 62

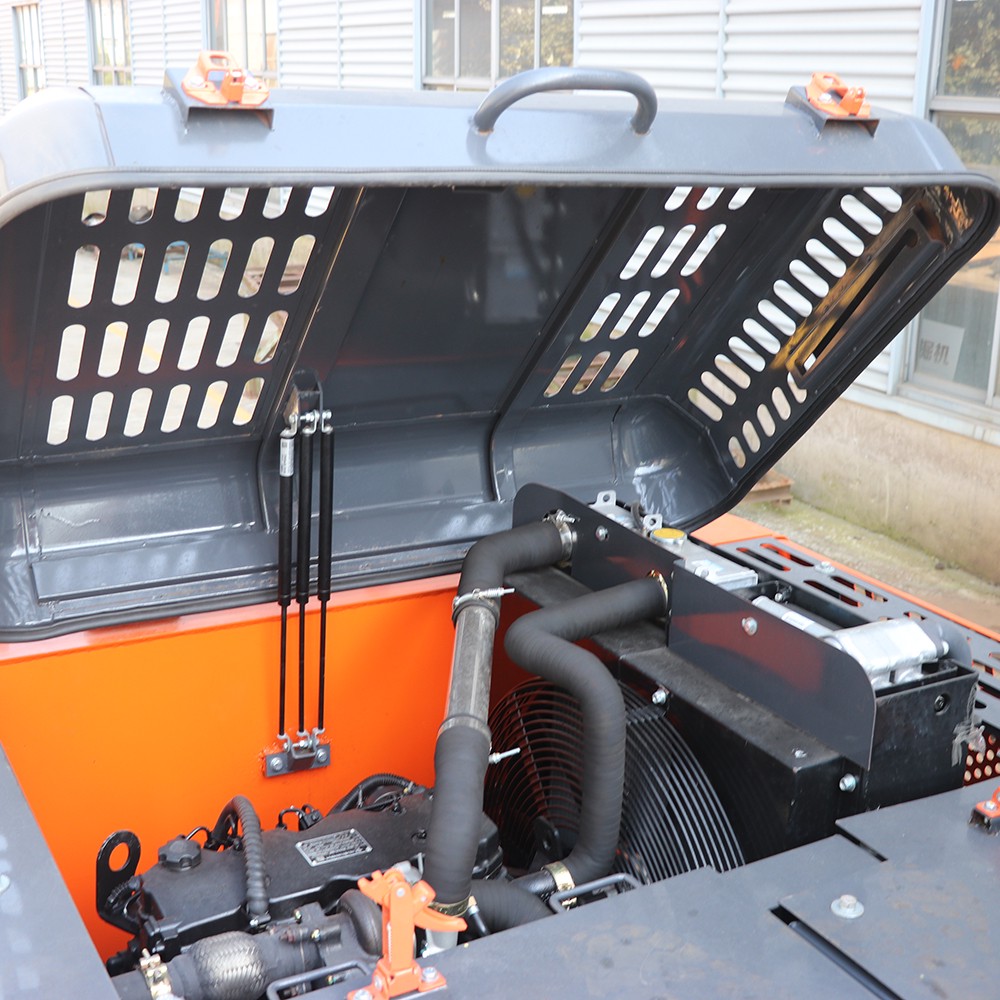

Power System
Engine ModelQuanchai National Stage III 4-Cylinder
Rated Power (kW/rpm)103 kW
Cooling MethodWater-cooled
Hydraulic System
Main Pump TypeVariable-displacement Axial Piston Pump
Main Pump Max. Flow Rate(l/min) 2 × 116
Swing Motor Type26.5
Working Hydraulic Circuit (MPa)Standard 32.5 / Turbocharged 34.3
Travel Hydraulic Circuit (MPa)32.5
Pilot Pump Flow Rate (L/min)27.7
Main Dimensions
Overall Transport Length (mm)7700
Overall Transport Width (mm)2600
Overall Transport Height (mm)2830
Cab Height (mm)2830
Upper Structure Width (mm)2490
Counterweight Ground Clearance (mm)920
Track Ground Contact Length (mm)2780
Overall Track Length (mm)3495
Track Shoe Width (mm)500
Overall Track Width (mm)2550
Track Gauge (mm)2000
Minimum Ground Clearance (mm)410
Tail Swing Radius (mm)2200
Working Range
Max. Digging Radius (mm)8260
Max. Digging Radius at Ground Level (mm)8110
Max. Digging Depth (mm)5630
Max. Digging Height (mm)8620
Max. Dumping Height (mm)6200
Max. Vertical Digging Depth (mm)5070
Max. Effective Digging Depth (mm)5380


Packaging And Transportation

Factory Show



  • 未标题-2
  • 未标题-1
  • 1770099593877195032174931968
  • 1770099592877195030983749632
  • 1770099592877195027796086784
  • 1770099590877195021143920640

FAQ



Contact Us



SUBMIT

Quality and After-sale Assurance

As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.

We promises that the name, model, specification and quantity of the equipment comply with the technical agreement. Guarantee that the equipment is excellent in craftsmanship, free from defects in design, materials, and workmanship, and meet customer needs.

We will provide service on installation and commissioning , no worry about after sales.

All equipment is delivered after passing the quality inspection and debugging.
