Excavator-65

Excavator-65

Engine Model Yanmar 4TNV98L
Emission Standard National III
Engine Power 39 kW / 2100 RPM
Number of Cylinders 4
Injection Method Direct Injection
Operating Parameters
Max. Digging Height (mm) 5632
Max. Digging Depth (mm) 3835
Max. Digging Radius (mm) 6145
Max. Dumping Height (mm) 3950
Max. Vertical Digging Depth (mm) 2680
WhatsApp:+86 18963088836
Email:coco@jcxcsteel.com
Contact Us

Product Description

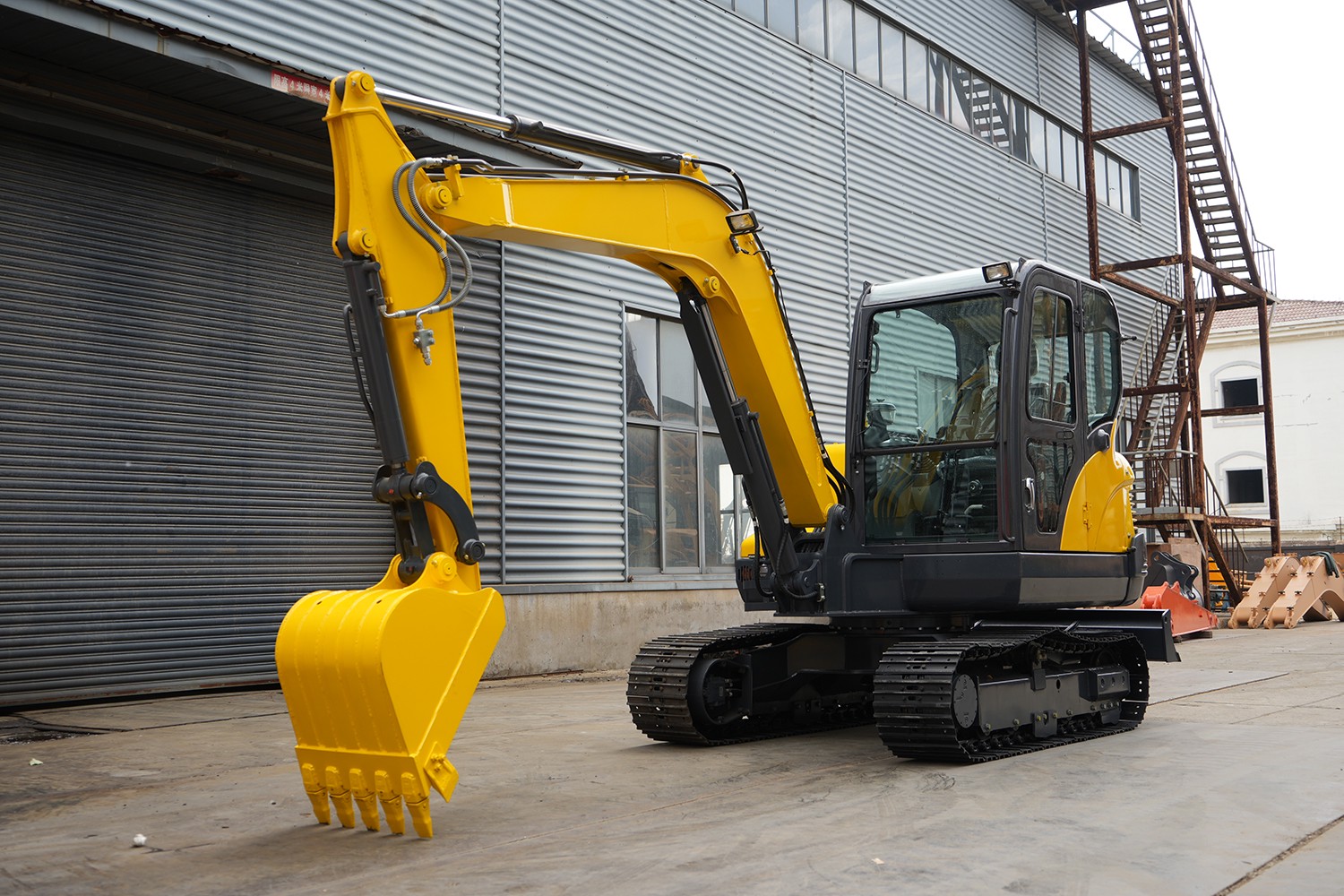

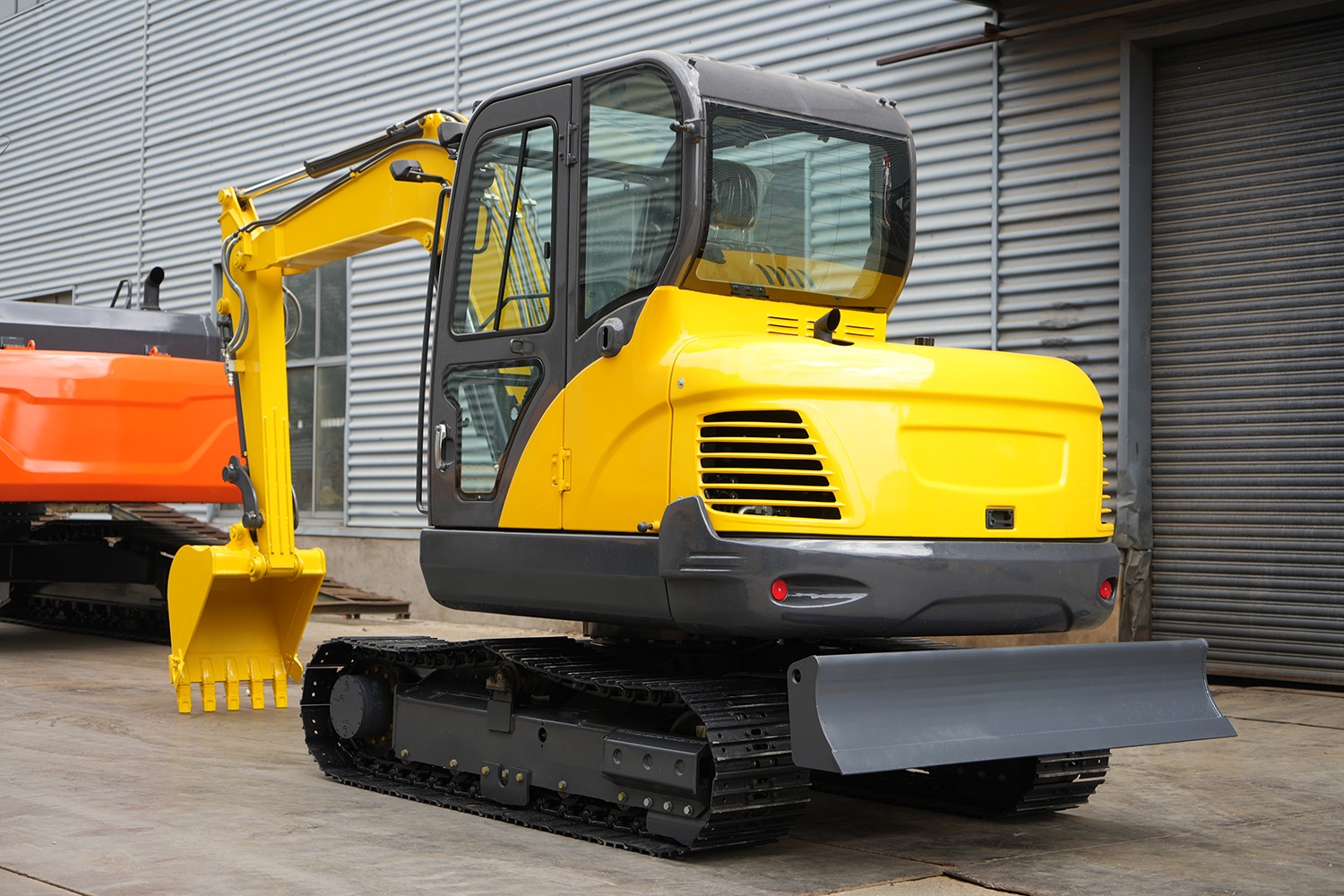

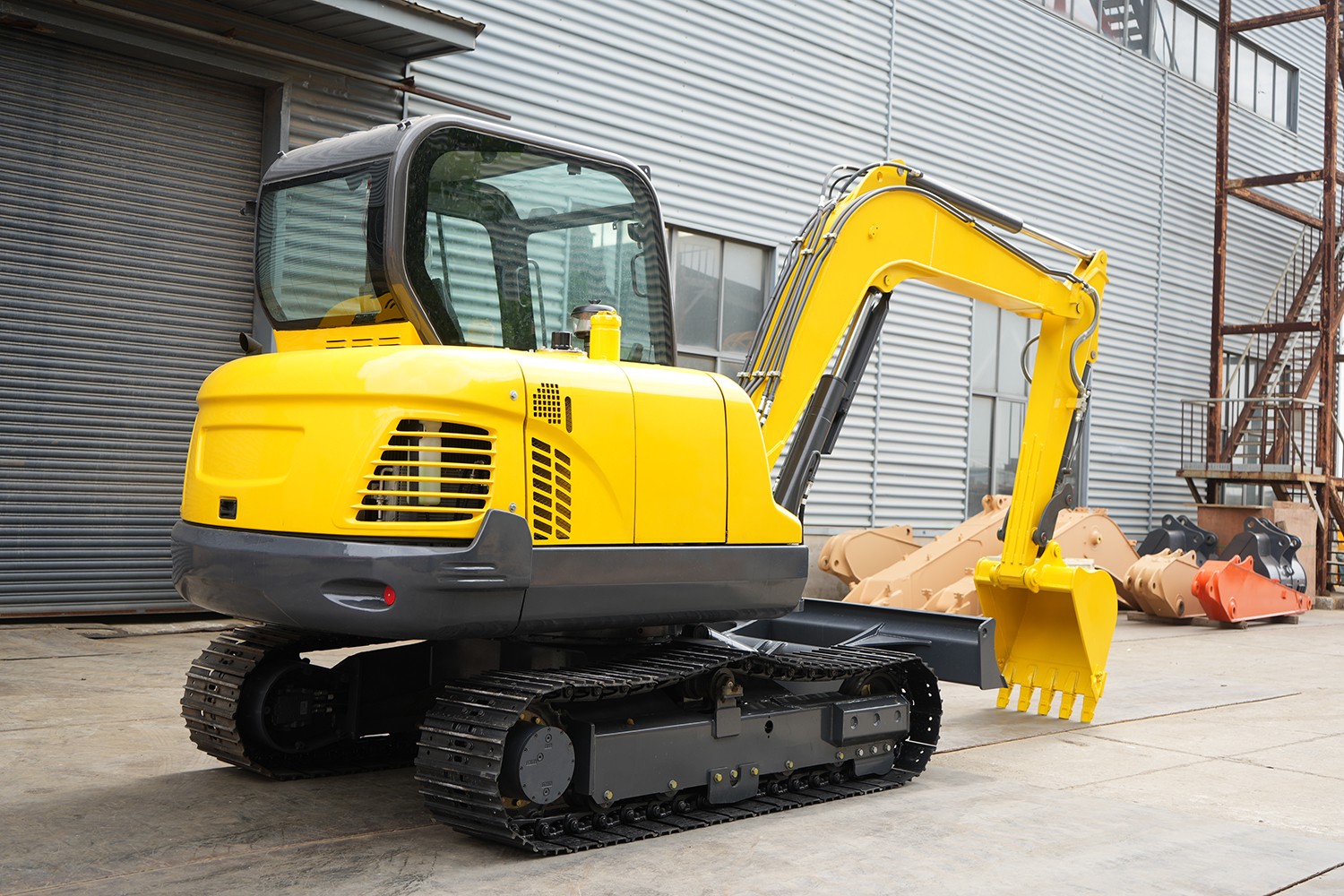

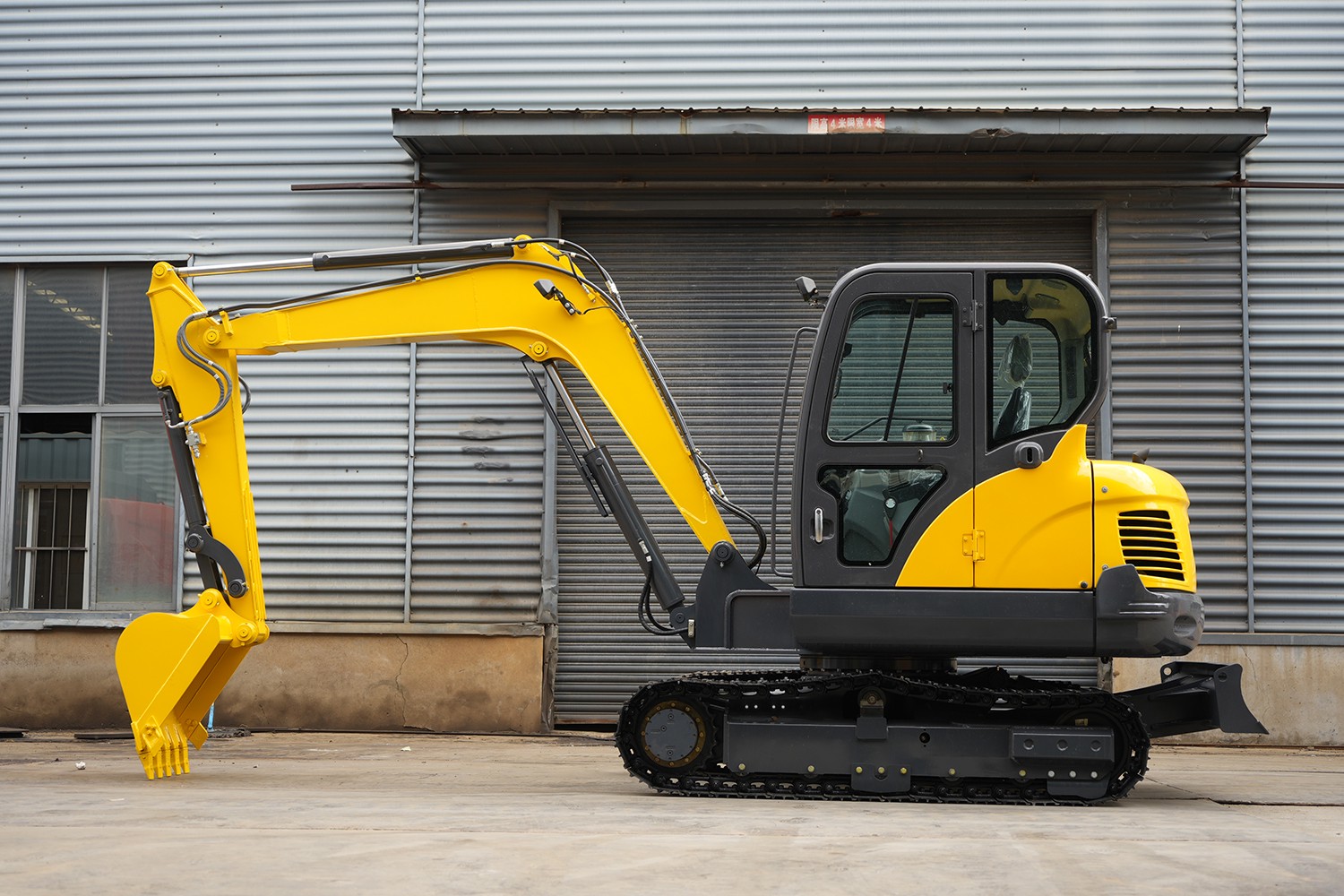

The WGQ-65 is a 6.5-ton class mini hydraulic crawler excavator designed to deliver exceptional performance in confined spaces without compromising on power. Ideal for urban construction, municipal engineering, landscaping, utility trenching, and small-scale infrastructure projects, the WGQ-65 combines compact dimensions with robust digging capabilities to help you get the job done efficiently.

Product Parameters



Operating Range
Transport Dimensions
Engine ModelYanmar 4TNV98LOverall Transport Height (mm)2587
Emission StandardNational IIIOverall Transport Width (mm)1980
Engine Power39 kW / 2100 RPMOverall Transport Length (mm)5865
Number of Cylinders4Specifications
Injection MethodDirect InjectionArm Length (mm)1600
Operating Parameters
Boom Length (mm)3000
Max. Digging Height (mm)5632Bucket Capacity (m³)0.23
Max. Digging Depth (mm)3835Operating Weight (kg)5850
Max. Digging Radius (mm)6145Performance
Max. Dumping Height (mm)3950Ground Pressure (kPa)31
Max. Vertical Digging Depth (mm)2680Gradeability30°
Dimensions
Travel Speed (km/h)4.5/2.1
Wheelbase (mm)2060Max. Drawbar Pull (kN)52
Tail Swing Radius (mm)1670Arm Digging Force (kN)32
Min. Swing Radius (mm)2640Bucket Digging Force (kN)49
Min. Ground Clearance (mm)385
Track Gauge (mm)1560
Overall Track Width (mm)2000
Overall Track Length (mm)2540
Track Shoe Width (mm)400
Upper Structure Width (mm)1850


Packaging And Transportation

Factory Show



  • 未标题-2
  • 未标题-1
  • 1770099593877195032174931968
  • 1770099592877195030983749632
  • 1770099592877195027796086784
  • 1770099590877195021143920640

FAQ



Contact Us



SUBMIT

Quality and After-sale Assurance

As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.

We promises that the name, model, specification and quantity of the equipment comply with the technical agreement. Guarantee that the equipment is excellent in craftsmanship, free from defects in design, materials, and workmanship, and meet customer needs.

We will provide service on installation and commissioning , no worry about after sales.

All equipment is delivered after passing the quality inspection and debugging.
